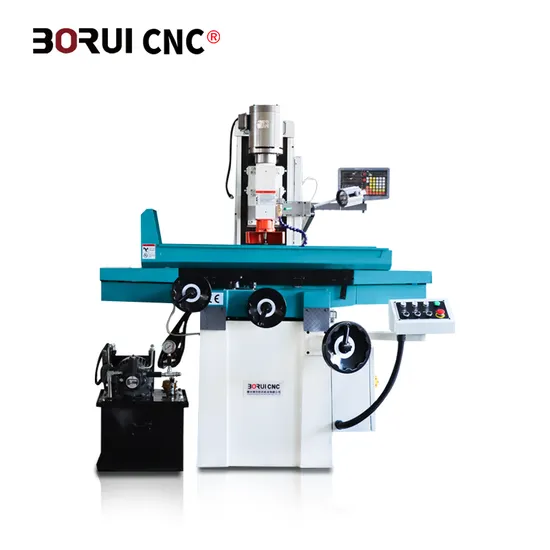

Vertical Surface Grinding Machine M7225 Precision Manual Flat Surface Grinder Table Size 500*250mm

Product Description

Precision vertical grinder surface grinding machine (M7125 M7225)
Product Description
Mainly used for rough grinding,fine, rough and precision of large parts of the surface, more than 0.8, the parallel degree within 0.005/300mm.
Especially suitable for metallurgy, automobile, tractor, saw blade, grinding tools, bearings and other industries for large parts of the.
The main features:
Grinding machine lathe bed and grinding head have strong rigidity.
The column uses the three point adjustment, compact structure.
The workbench is rectangular powerful magnetic chuck.
High effieonv. can match empty sicon flling demagnetization.
It qupped with a coling liuid purfving device.
The main specification:

Technical Parameters		Unit	M7125	M7225
Table maximum cutting area((L X Wx H )		mm	560*190*235	560*250*490
Working table movement	Max Grinding Length	mm	500	560
	Max. Grinding width	mm	190	250
Distance From Table Surface To Spindle Center		mm	235	490
Slide way			V-type rail with steel-ball	Double V-type rall with steel-ball
Maximum work load		Kg	200	250
Table size		mm	460*180	500*250
Number of T -Slot		mm*n	12*1	14*1
Table speed		m/min	3-23	3-23
Front and rear wheel feed		mm	0 02/Graduation 2.5/revolution	0 02/Graduation 2.5/revolution
On the hand wheel feed		mm	0.01/Graduation 1.25/revolution	0.01/Graduation 1.25/revolution
Wheel Size (diaXwidth X bore)		mm	200*16*31.75	200*16*31.75
Spindle speed	50HZ	rpm	2850	2850
	Variable frequency motor (matching)		0-6000	0-6000
Spindle motor		Kw	1.1	1.5
Cooling pump		kw	0.04	0.04
Packing Size (LxWxH)		mm	1060x1170x1870	1960x1630x1870
Cross,Net		T	0.75 ,0.65	1.1/1.0

Standard Accessories:
Coolant tank
Shandard electro magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser shant(not include diamond pen)
Build inelectro magnetic chuck controller
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
