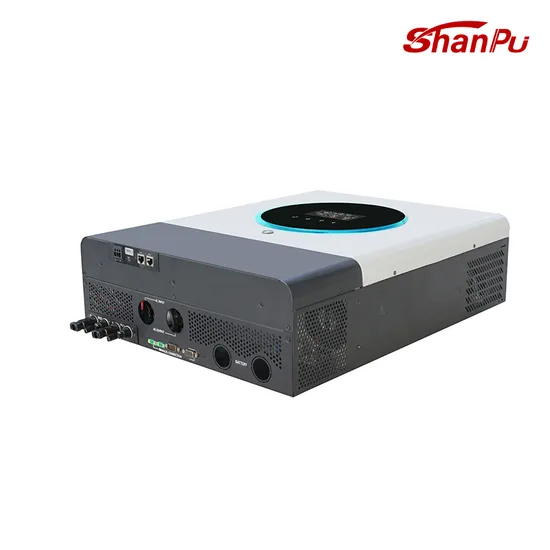

8kw Hybrid Photovoltaic Solar Inverter on/off Grid Inverter for Solar Energy Storage Systems

Product Description

hybrid solar inverter 8KW

5.5kva 6kva 8kva 11kva Touch screen Power Solar Inverter with MPPT Solar Charge Controller
power inverter function:
1. Touch screen display.
2. PV and utility power the load at the same time(can be set )
3. Output power factor PF=1.0.
4. On&Off Grid with energy storage.
5. Energy generated record,load record,history
6. Information and fault record.
7. Structure with dust filter.
8. AC charging start and stop time setting.
9. External Wi-Fi device optional.
We have 1.5KW to 11KW for your choice , customized order is acceptable , any confusion , pls kindly feel free to contact with us

Power solar inverter parameter

PRODUCT ATTRIBUTES	Power solar inverter
Product model	SP-solar-8kw-wifi
Rated power	8000VA
AC input
Voltage	230Vac
Voltage range	170-280Vac (for personal computers) 90-280Vac (for home appliances)
Frequency	50/60Hz
Output
Voltage / max voltage	230Vac±5% / 800W
Efficiency	up to 93%
Transfer time	10ms (For Personal Computers);20ms(For Home Appliances)
Waveform	Pure sine wave
DC Output	12VDC±5%,100W
Battery
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
Solar charger&AC charger
solar charge type	With MPPT solar charge controller
Maximum PV Array Power	8000W(4000WX2)
MPPT Range Operating Voltage	90-450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Solar Charge Current	120A
Maximum AC Charge Current	120A
Maximum Charge Current	120A
Use environment
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°Cto60°C
Physical
Size	14.7*43.2*55.3cm Net weight 18.4kg
Communication interface	USB/RS232/RS485/WiFi/Dry-contact

Customer Feedback
Certifications
Factory Show
Power soloar inverter application:
1. Off-grid solar power systems: Solar inverters are used in off-grid solar power systems to convert DC power into AC power that can be used to power homes and businesses that are not connected to the grid.
2. Grid-tied solar power systems: Solar inverters are used in grid-tied solar power systems to convert DC power into AC power that can be fed back into the grid, allowing homeowners and businesses to earn credits for the excess power they generate.
FAQ
1.How to choose suitable inverter? If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter. 2.How do I choose the size of the inverter? Different device are asking for different power . You can view the load power values to determine the size of the power inverter. Notice: Resistive load: you can choose the same power as the load. Capacitive loads: according to the load, you can choose 2-5 times power. Inductive loads: according to the load, you can choose 4-7 times power.

---
