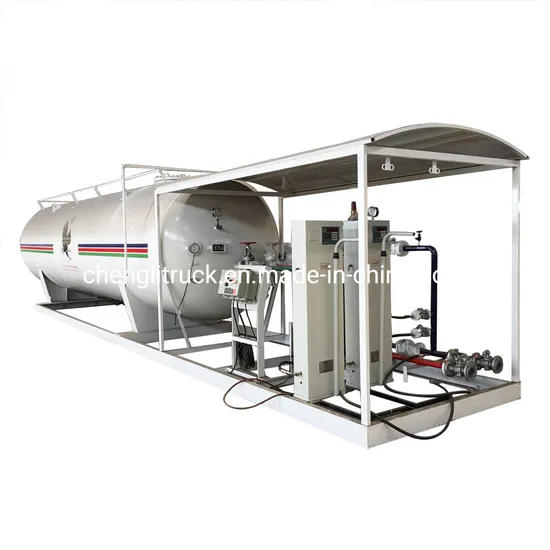

10tons 20000 Liters LPG Gas Filling Skid Station with Filling Scale or Dispenser

Product Description

20000 Liters LPG gas filling tank Skid Station 10tons with filling scale or dispenser
1)lpg tank skid capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2)lpg tank skid material
Q345R Q370R SA516 16MnR
3)lpg tank skid production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4)Main parts of lpg tank skid
pump, motor, compressor, cut-off valve, safety valve, alarm system, lpg dispenser or filling scale, water spraying system or sunshade, magnetic level gauge (rochester gauge), rotor gauge, temperature gauge, pressure gauge, lpg skid control panel, mass flow meter...

Technical parameters for lpg tank Filling Station

Specification of 10ton 20cbm LPG Tank
Volume of Tank	20CBM(20,000liters) 10ton
Filling Weight	10000 kg
Tank Weight	5050 kg
Thickness of Shell (mm)	12 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	2100 mm
External Dimensions (mm) (length x width x height)	6154*2124*2714mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.77 MPa
Corrosion Allowance	1 mm
Medium Density	500kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.

Accessory list for lpg tank Filling Station

Item	Model	Unit	Quantity
Pump	YQB15	Unit	1
Electric Motor	YB3-200L	Unit	1
Float-operation hydraulic level gauge		Piece	1
Safety valve	DN50	Piece	1
Safety reverse valve	DN50	Piece	1
Check valve	DN50	Piece	2
Stop Valve	DN50	Piece	1
	DN32	Piece	1
	DN25	Piece	4
	DN20	Piece	2
	DN15	Piece	2
Flexible Hose	L=4M DN50/25	Set	1
Shock-proof pipe	L=500mm DN50	Piece	1
Filling Gun hose	L=2M	Set	3
Elbow Cap	DN65	Piece	2
	DN50	Piece	10
Flange	2.5MPaDN65	Piece	1
	2.5MPaDN50	Piece	10
	2.5MPaDN32	Piece	1
	2.5MPaDN25	Piece	8
	2.5MPaDN15	Piece	10
Metal gasket	DN65	Piece	5
	DN50	Piece	10
	DN32	Piece	2
	DN25	Piece	10
	DN20	Piece	2
	DN15	Piece	30
8.8 degree bolt	16*70	Set	100
	12*55	Set	100
Dispenser	Single nozzle/double nozzle	Unit	1
Base Plate		Set	1
Gas Leak Detector		Unit	1
Water Sprinkler System	Manual Operation	Set	1

Detailed pics for lpg tank filling station


lpg tank filling scales and dispenser



Company review
About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.

Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.
20000 Liters LPG gas filling tank Skid Station 10tons with filling scale or dispenser

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

---
