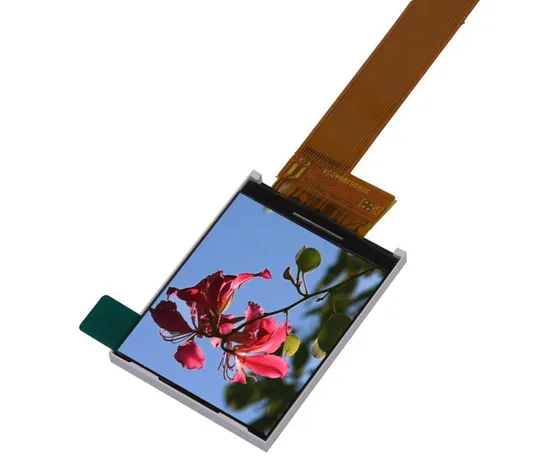

Ultra-Bright 1.77-Inch TFT LCD Display Panel 1000 CD/M² High-Visibility Screen 128X160 Resolution for Outdoor and Industrial Applications

US$3.00-5.00 10 Pieces (MOQ)

Basic Info.

Model NO.
RG017LCT-03
Touch Screen Type
No Touch
Type
LCM
Response Time
30ms
Viewing Angle
45/45/35/15
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Number of Dots
128X160
Contrast Ratio
500:1
Luminance
1000 CD/M2
Active Area
28.03X35.04 mm
Module Size(W*H*T)
33.4X43.9X3.05 mm
Back Light
4LED
System Interface
8-Bit MCU
Driver IC
St7735s
Pixel Arrangement
RGB Vertical Stripe
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100000/Month

Product Description

Specification:
ITEM Standard value
LCD Type TFT Transmissive
Driver element a-Si TFT Active matrix
Number of Dots 128*(RGB)*160 Dots
Pixel Arrangement RGB Vertical Stripe
Active Area 28.03 *35.04 mm
Viewing Direction 6 O'clock
Driver IC ST7735S
Module Size(W*H*T) 33.4x43.9x3.05 mm
Back Light 4 White LED
System interface 8-bit MCU interface

Mechanical drawing:
Product Applications
Our LCD module sizes are from 1.4-inch to 10.1-inch which are widely used in digital cameras, DV, security monitoring, camcorder, PMP, MID and Education Learning Aid, POS Machine, etc.
Product Application
Small-size TFT LCD display mobile device, watch toy, medical equipment, office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
