68 Degree Residential Brass Concealed Fire Sprinkler for Fire Fighting System

Product Description

Product Description

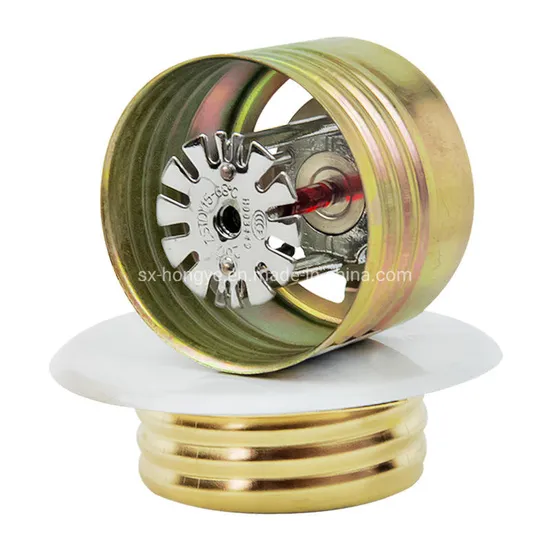

FIRE SPRINKLER HEAD CONCEALED TYPE
Fire sprinkler is a nozzle that use to spray water to the fire.
It is installed at the end of water pipe.
It can sense the heat by a specific glass bulb then open automatically to allow water spray out to extinguish the fire.
1) Type: Concealed
2) Material: brass,chrome finishing
3) Temperature: 68ºC(155ºF) sprinkler with 63ºC(145.4ºF) plate
4) Nominal diameter: 15mm
5) K factor: DN15=5.6gpm/psi½(80 lpm/bar½)
6) Thread: BSP R1/2
7) Glass bulb: standard respond
8) Weight: 135±5g
Real Photos


Product Parameters

Norminal Diameter	Connection Thread	Flow rate	Temperature
DN15	R1/2"	80±4	57/68/79/93/141°
DN20	R3/4"	115±6	57/68/79/93/141°
