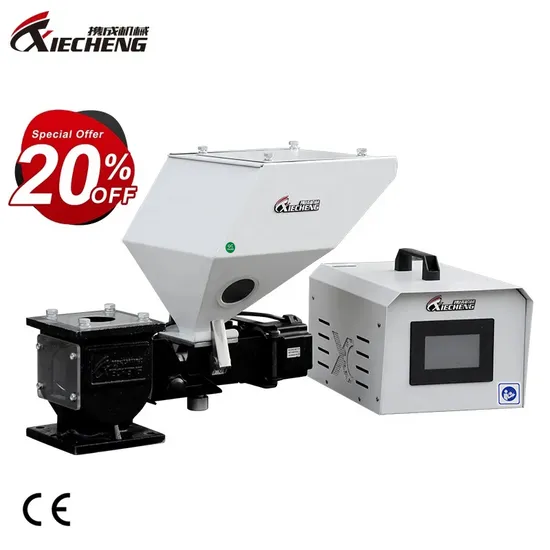

Automatic Plastic Color Masterbatch Mixing Machine Additive Feeder Single Color Volumetric Doser for Plastic Industry

Product Description

Automatic Plastic Color Masterbatch Mixing Machine Additive Feeder Single Color Volumetric Doser for Plastic Industry Product Description
Volumetric Dosers
XCM series volumetric doser can automatically mix 1 main material and 1-3 masterbatches or additives of plastic raw materials in proportion. It is suitable for injection molding, extrusion or blow molding production. This series of products adopts hybrid stepping motor and special PLC touch controller, which can accurately measure the addition proportion of masterbatch and additives. The doser can be connected with all kinds of molding machine signals, and then run synchronously to ensure the consistency of molding product performance.
Product Specifications

Model	Monochrome Machine
	XCM-12	XCM-14	XCM-16
Motor Power (Kw)	0.3	0.3	0.3
Rotary Speed (r.p.m.)	1.8~300	1.8~300	1.8~300
Mixer Power (Kw)	0.09	0.09	0.09
Screw Dia. (mm)	12	14	16
Output Capacity (kg/hr)	0.05~20	0.1~40	0.1~40
Sorage Capacity (L)	13	13	13
Main Raw Material Hopper (L)	Optional	Optional	Optional
Mixer Power (Kw)	Optional	Optional	Optional
Floor Stands	Optional	Optional	Optional
Dimensions
H(mm)	430		430
W(mm)	560	560	560
D(mm)	300	300	300
Net Weight (kg)	25	25	25

If you want more sizes, please contact us for details
CONTACT SUPPLIER Product Actual Shooting
Product Details

01 Motor
▪ Using the high accuracy hybrid stepping motor, measurement accuracy and wide output range;
▪ Motor drive directly, without gearbox, long service life, maintenance-free.
02 Screw
SUS304 stainless steel screw, more durable.
03 PLC Controller
▪ Adopted PLC touch screen controller, the control accuracy is higher and more stable.
▪ Capable of saving 50 recipes of formula and fast booting.
Detachable Modules
Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability;
The roof-shaped quick-change(the dosing section can be removed without granulate leaking form the neckpiece).
Application Range
