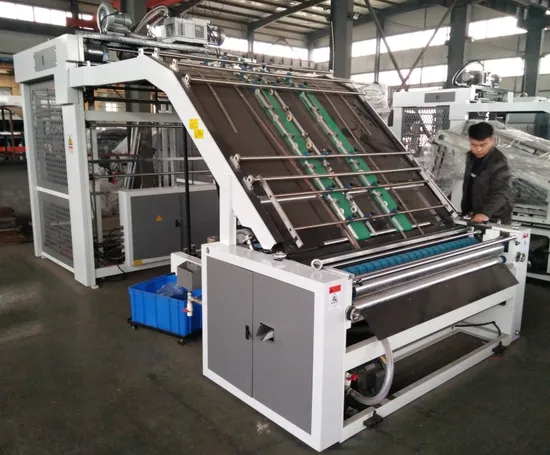

Sh Lincheng Lum-B1300/1450/1550/1650 Automatic Flute Laminating Machine

Product Description

Product Description
Product Parameters Technical parameter:

Model	LUM-B 1300	LUM-B 1450	LUM-B 1550	LUM-B 1650
Max laminating size	1300 x1250mm	1400 x1250mm	1500 x1250mm	1600 x1250mm
Min laminating size	400 x400mm	400 x400mm	400 x400mm	400 x400mm
Economic speed	0-100sheets/min	0-100sheets/min	0-100sheets/min	0-100sheets/min
Laminating precision	±1.5mm
Power	10.0kw	12.0kw	12.0kw	12.0kw
Size	13.5x2 x2.4m	13.5x2.05x2.4m	13.5x2.15x2.4m	13.5x2.25x2.4m
Weight	About 4800kg	About 5000kg	About 5200kg	About 5400kg
Bottom paper thickness	A/B/C/E flute, 3/4/5 layer , less than 12mm thickness
Surface paper gram	150-600 g/m2

Features The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed. New concept front gauge location, position high accuracy, bottom sheet never pull ahead. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically. Automatic gluing, and the glue can be used circulatory, avoid glue waste. Roller design scientifically, avoid glue fly out when the speed is high. Pressure rollers adopt one side adjustment, convenient and fast. Rocker controls wash roller's fluctuation, easy cleaning. Counter designs scientifically, easy recording the amount you have been worked. Company Profile
