Expiry Date Coding Logo Printing Number Marking CO2 Laser Flying Machine for Plastic Water Bottle Pharmaceutical Cosmetics Food PE PP Numbering Cable Marker

Product Description

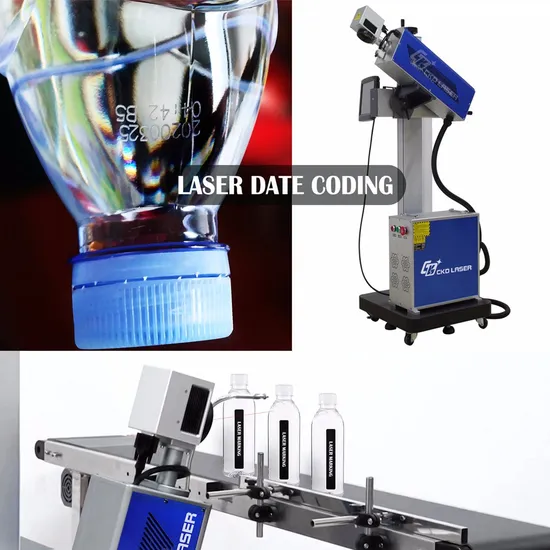

CKD-CFLA V20.03 is used for marking produce date, series number, bar code on packing box or bottle. It works with other equipment on the production Line, the laser automatically marks logo, date or numbers on product once the product enters into the marking scope.
CKD-CFLA V20.03 is a CO2 laser marking system, mainly mark on non-metal materials, such as, plastic bottle (PP, PE, PVC, ABS and so on), wood, bamboo, leather, paper, cloth, organic materials, epoxide resin and so on.
CKD-CFLA V20.03 is equipped with accurate calculation system, with a multi-functional touch screen to set marking content, by coder to coordinate the speed of laser and product conveyor, through sensors sensing products into the laser area and transfer the signal back to the laser marking machine, then the machine commands marking head output laser.
In the whole process, according to the set program, the machine automatically generates the next marking content, automatically jumps number or code, to mark each product a unique number or code.
Automatically counts and stores data even when there is no network. The machine is equipped with one or two (optional) external focus tool (s), which makes operation much easier. Compared with the traditional ink jet coding, CKD-CFLA V20.03 laser jet coding technology is fast, no consumables, no pollution, and the marked connect cannot be erased, this is a better anti-counterfeiting solution.
It is popular in printing date on water bottle made of PP plastic, compared with inkjet, there is no need to wait for ink to dry, no ink, writing is clearer, pollution-free, odorless, healthier.
The marking direction is adaptable and adjustable. The user can switch the marking direction to mark/ engrave/ print logo / date Vertical, horizontal or other directions.
Not only marking head, the whole laser path's direction also can be adjusted according to your application. There's an angle adjuster under the laser path.
The Y-axis is adjustable for move marking head forward or backward, the Z-axis is adjustable for focusing up or down.
The power of the machine and touch control are all fixed on the machine, the base load and can easily move the whole machine with four universal wheels which can be braked according to your demand.

CONFIGURATION

Parameters	Unit	Data	Data	Data	Data
Type		CKD-CFLA-30	CKD-CFLA-40	CKD-CFLA-60	CKD-CFLA-100
Power	W	30	40	60	100
Laser		CO2
Laser Wavelength	um	10.6μm
Optional Marking Area	mm	100*100	100*100/150*150	100*100/150*150/200*200
Marking Type		Online Mark / Static Mark
Control System		Touch controller
		Sensor
		Coder
		Software
Service Life of Laser Source	hrs	45000
Cooling Mode		Air cooling
Operation Environment Temperature	ºC	0-30
Total Power	W	<600	<620	<700	<700
Voltage		220V,50Hz/110V,60Hz
Dimension (L*W*H)	mm	75*55*151
Weight	Kg	120		150	155

Notice: The conveyor is not included, CKD-CFLA V20.03 can match your conveyor or produce line to work.

---
