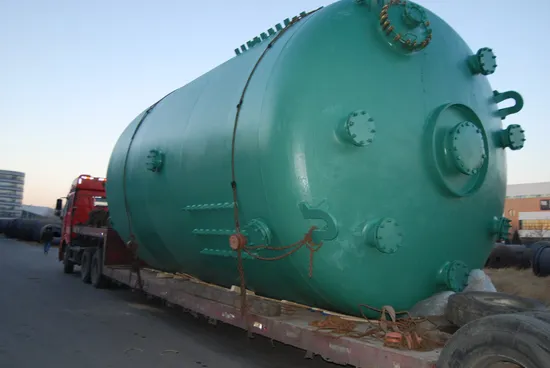

Glass-Lined Closed Tank 50000L /Horizontal Type Distilling Reaction Mixing Storage Tank

Product Description

Product specification: 3000L-80000L
Product standard: GB25025-2010, GB/T 150-2011
Application: It is widely used in reaction, evaporation, concentration, synthesis, extraction, polymerization, saponification, mineralization, chlorination, nitrification and other industrial production and scientific research in medicine, chemical industry, organic synthesis, dye and national defense industry to replace expensive stainless steel and non-ferrous metals. Standard closed glass lined tank (tank) specifications: 3000L, 4000L, 5000L, 6300L, 8000L, 12500L, 16000L, 20000L, 25000L, 30000L, 40000L, 50000L, 63000L, 80000L, etc., can also be non-standard closed glass lined storage tank according to user needs

Nominal volume VN/L	Actua volume V/L	Nominal Diameter D	Nominal diameter of pipe orifice DN						Liquid level gauge Nomina length*quantity
			a Inlet	b Outlet	c Process port	d Spare port	h Process port	Liquid level gauge e1-2 h1-2 g1-2
3000	3355	1450	80	125	50	50	100	65	1400×2
4000	4777	1600							1600×2
5000	5561	1600							1800×2
6300	6877	1750							1900×2
8000	8944	1900							2000×2
10000	11668	2200		150					2000×2
12500	13644	2200							2250×2
16000	17318	2400	100		80	80	150		2400×2
20000	21738	2600							2500×2
25000	27640	2800							2700×2
30000	32547	3000							2800×2
40000	43189	3200		200					3200×2
50000	53892	3400							3550×2
63000	69000	3600							2700×3
80000	88000	3800							3000×3

Nominal volume VN/L	Size
	H0	H1	H2	H3	H4	H5	H6	D1	D2	D3	n-D4
3000	2775	88	2260	1400	615	220	160	500	1090	1086	8-φ24
4000	3153	105	2630	1600	741	268			1200	1240
5000	3542	105	3020	1800	931	278			1200	1240
6300	3737	110	3140	1900	894	402			1320	1394
8000	4020	115	3460	2000	1051	328			1430	1544
10000	3970	115	3430	2000	995	235			1650	1648
12500	4540	115	3950	2250	1265	215			1650	1648
16000	4792	120	4220	2400	1336	248	180	600	1800	1852
20000	5100	120	4520	2500	1460	200			1950	2056
25000	5545	130	4950	2700	1610	230			2100	2256
30000	5680	130	5100	2800	1637	228			2250	2256
40000	6470	135	5900	3200	1940	320			2400	2560
50000	7087	135	6500	3550	2182	337			2550	2720
63000	8020	135	7440	2700	1390	249			2420	2880
80000	9060	145	8390	3000	1695	217			2520	3040	8-φ30

---
