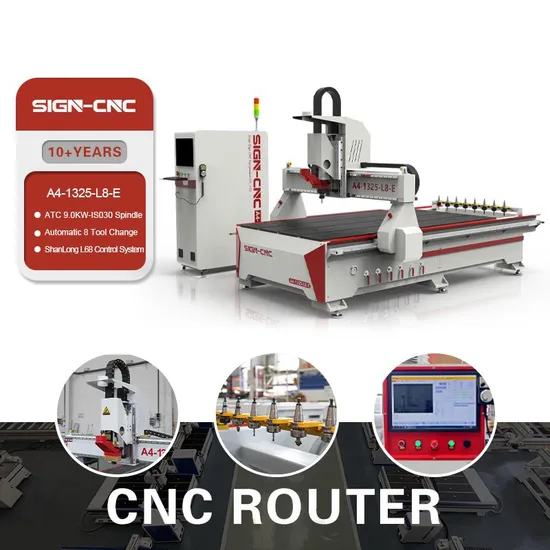

| Model | A4-1325-L8-E | A4-2030-L8-E |
| Working area | 1300*2500mm | 2000*3000mm |
| Z feeding | 300mm | |
| Frame structure | Steel casting-welding | |
| Type of table cover | Vacuum table with T-slot | |
| Vacuum pump | 5.5kw air cooling | |
| Z axis transmission | Ball screw and 25 square guide rails | |
| X Y axis transmission | Taiwan 25 square guide rails + Helical rack | |
| Max. Rapid Travel Rate | 33000mm/min | |
| Max. Working Speed | 25000mm/min | |
| Command Code | G code * .u00 * .mmg * .plt | |
| Operating voltage | AC 380V/50Hz | |
| Spindle power | HQD 9.0 KW | |
| Tool Magazine | 8 - 12 | |
| Type of cooling | Air cooling | |
| Spindle Speeds | 0-24000rpm/min | |
| Drive motor type | Inovance 1500w servo motor and driver | |
| operating system | ShanlongL68 | |
| Dust Collector | 3kw with double bags | |
| Lubrication system | Automatic | |
| Supported software | Artcam software, Type3 software | |
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | |
| Warranty | Two year | |
