Advanced Corrugated Sheet Roll Forming Machine for Efficient Production

Product Description

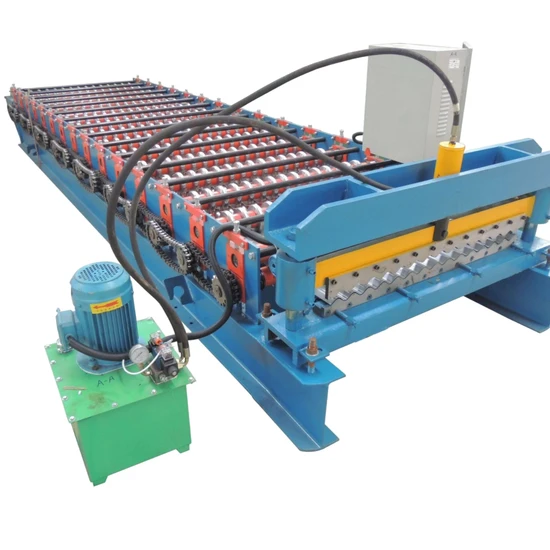

roof tile machine/CORRUGATED ROLL FORMING MACHINE
Product Description
(1) Suitable material: color steel
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1250/1000mm
(4)Width of the plate after forming: 1000/800mm
(5) Productivity :1-3m/min
(6) Roller steps :16rows
(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm
(8) Diameter of active shaft: 80mm
(9) Wall thickness of the main forming machine:16mm steel plate
(10)Main forming machine body : 300mmH steel
(11) Transmission chain is1''
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 4kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:8500mm*1600mm*1200mm

---
