Heavy Duty Atc Wood CNC Router Machine Tool Changer for Cabinets Door Furniture

Product Description

Technical Paremeters

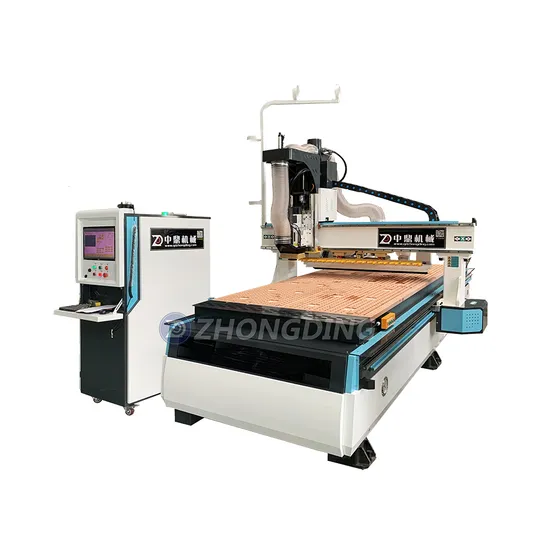

ZD1325 ATC CNC ROUTER WITH LINE TOOL MAGAZINE

9kw cc tool change spindle,suitable for efficient cutting,slotting,milling and other processing of panel furniture

Model	ZD325-Atc cnc router with line tool magazine
Running Speed	120m/min
Working Speed	25m/min
Device architecture	After sand blasting and stress relief annealing treatment, it is processed by CNC gantry CNC one-time forming and processing. The structure is stable, the precision is high, and it is not deformed for a long time.
Spindle power	9kw automatic tool changer spindle HQD
Servo drive system	Three-axis 1.8kw high speed servo motor Z axis + brake
Control system	Taiwan imported Syntec/WEIHONG processing center dedicated control system
Speed reduction mechanism	Taiwan imported Wanxin reducer.
Rack and pinion	German imported brand ROR 1.5M high precision grinding helical rack.
Rail screw	Taiwan imported dragon horse rail + TBl screw
Positioning way	3+2 high-precision automatic positioning cylinder pedal-type one-key positioning device.
Bed structure	High-precision heavy-duty side-mounted bed, processed by large-scale CNC five-face milling center.
Countertop structure	Double-layer vacuum adsorption of 6 large partitions, multi-point adsorption / multi-slot design / adsorption uniform / instantaneous adsorption /instant release
Electrical accessories	Japan imported OMRON relay
Input voltage	AC380V/50HZ

Product Details
High-precision CC Brand spindles for power and flexibility. Perfect for milling, boring, and cutting applications.
HINWIN helical rack and pinion drives provide accurate and dynamic acceleration. Their durable design ensures a long service life with minimal maintenance.
High strength,minimal vibration.
The gantry supports are precision machined from cast iron tooling plate.
Syntec control system from taiwan

There are 12 knives suitable for efficient cutting, slotting, milling and other processing of panel furniture.
We use electric oiling system not manual to make our machine working more better in moving and use,save your time of maintenance.

We use fuse to keep the safety of the machine.
And our machine meet the demands of CE.
Application
Wide range of applications
More scope of application and wider application
Meet your different needs
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Replying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as:polishing machines,panel machine,press machine etc,which have been exported to lots of countries and regions.We have establish 7 complete system to guarantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kind of machines.
Certifications

Exhibitions
Our customer feedback

FAQ

---
