1) Drilling, milling and tapping2) Head swivels 360 degree horizontally3) Headstock and Worktable up & down perpendicularly4) Super high column5) Precision micro feed6) Positive spindle lock7) Distinct auto device for releasing tools, operate easily8) Geared drive, lower noise

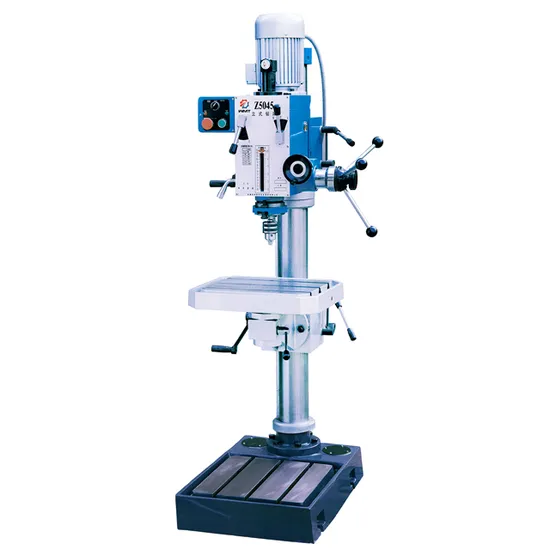

| Specification | Z5032/1 Z5040/1 Z5045/1 | Z5032 Z5040 Z5045 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm(1-1/4"/1-5/8"/1-3/4") |
| Spindle taper | MT3/MT4/R8 |
| Spindle travel | Φ130mm(5-1/8") |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250rpm |
| 60Hz | 95-1500rpm |
| Step of spindle auto-feeding | 6 steps | / |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | / |
| Min.distance from spindle axis to column | 290mm(11-3/8") |
| Max.distance from spindle nose to worktable | 725mm(28-1/2") | 700mm(27-1/2") |
| Max.distance from spindle nose to stand table | 1125mm(44-1/4") |
| Max.travel of headstock | Φ250mm(10") |
| Swivel angle of headstock | 360° |
| Max.travel of worktable bracket | Φ600mm(23-5/8") |
| Worktable size of avaliablity | 380×300mm | 730×210mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° | / |
| Size of stand worktable of avaliability | 417×416mm |
| Motor Power | 0.75KW/1.1KW/1.5KW |
| speed of motor | 1400rpm | 1400rpm |
| Net weight/Gross weight | 440kg/490kg | 470kg/530kg |
| Packing size | 1850×750×1000mm | 1850×950×1000mm |
| Loading amount/20" container | 18pcs | 12pcs |
