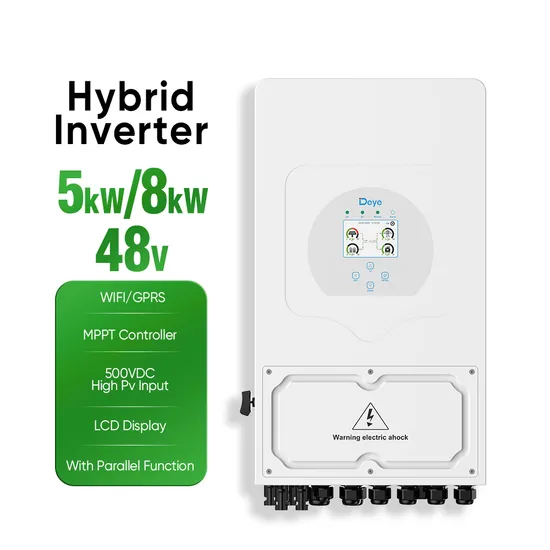

| Model | SUN-3.6K-SG05LP1-EU | SUN-5K -SG05LP1-EU | SUN-6K -SG05LP1-EU | SUN-7K -SG05LP1-EU | SUN-7.6K -SG05LP1-EU | SUN-8K -SG05LP1-EU |
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range (V) | 40-60 | |||||
| Max. Charging Current (A) | 90 | 120 | 135 | 175 | 190 | 190 |
| Max. Discharging Current (A) | 90 | 120 | 135 | 175 | 190 | 190 |
| Charging Strategy forLi-ion Battery | Self-adaption to BMS | |||||
| Number of Battery Input | 1 | |||||
| PV String Input Data | ||||||
| Max. PV Input Power (W) | 4680 | 6500 | 7800 | 10000 | 9880 | 10400 |
| Max. PV Input Voltage (V) | 500 | |||||
| Start-up Voltage (V) | 125 | |||||
| MPPT Voltage Range (V) | 150-425 | |||||
| Rated PV Input Voltage (V) | 370 | |||||
| Max. Operating PV Input Current (A) | 13+13 | 26+26 | ||||
| Max. Input Short-Circuit Current (A) | 17+17 | 34+34 | ||||
| No. of MPP Trackers/ No. of StringsperMPP Tracker | 2/1+1 | 2/2+2 | ||||
| AC Input/Output Data | ||||||
| Rated AC Input/Output Active Power (W) | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 |
| Max. AC Input/Output Apparent Power (VA) | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 |
| Rated AC Input/Output Current (A) | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | 31.9/30.5 | 34.5/33 | 36.4/34.8 |
| Max. AC Input/Output Current (A) | 18/17.2 | 25/23.9 | 30/28.7 | 35/33.5 | 38/36.3 | 40/38.3 |
| Peak Power (off-grid) (W) | 2 times of rated power, 10s | |||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||
| Rated Input/Output Voltage/Range (V) | 220/230 0.85Un-1.1Un | |||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||||
| Grid Connection Form | L+N+PE | |||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||
| DC Injection Current | <0.5% In | |||||
| Efficiency | ||||||
| Max. Efficiency | 0.976 | |||||
| Euro Efficiency | 0.965 | |||||
| MPPTEfficiency | >99% | |||||
| Equipment Protection | ||||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||
| Interface | ||||||
| Communication Interface | WIFI, RS485, CAN | |||||
| General Data | ||||||
| Operating Temperature Range (ºC) | -40 to +60ºC, >45ºC Derating | |||||
| Permissible Altitude | 2000m | |||||
| Noise (dB) | <30 | |||||
| Ingress Protection(IP) Rating | IP 65 | |||||
| Inverter Topology | Non-Isolated | |||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | |||||
| Cabinet Size (WxHxD mm) | 330×580×232 (Excluding Connectors and Brackets) | |||||
| Weight (kg) | 24.9 | |||||
| Type of Cooling | Intelligent Air Cooling | |||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
| Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105 | |||||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
