New-Style Factory Outlet China Injection Machine of Highsun

Product Description

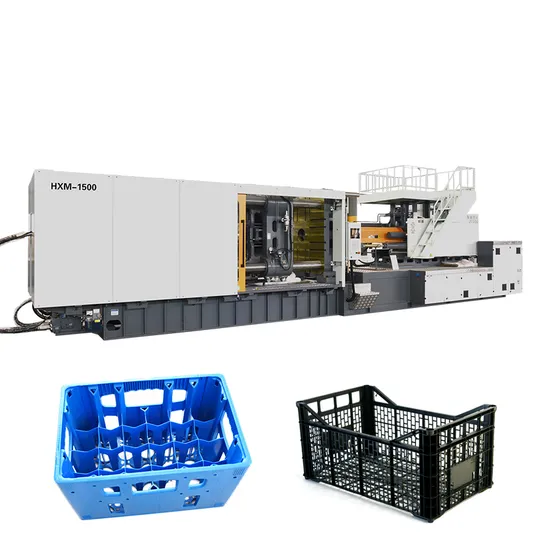

1.Picture

MODEL:HXM1500
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	130	140	150
	SCREW L/D RATIO	L/D	23	22	21
	INJECTION CAPACITY IN THEORY150130112882	cm3	8627	10005	11486
	INJECTION WEIGHT(PS)	g	7851	9105	10452
		oz	276.9	321.1	368.8
	INJECTION PRESSURE	MPa	180	155	135
	INJECTION RATE	g/s	1240	1438	1651
	PLASTICIZING CAPACITY	g/s	120	140	160
	SCREW SPEED	rpm	100
CLAMPING UNIT	CLAMPING FORCE	KN	15000
	MOVING MOULD-PLATE STROKE	mm	1500
	MAX. MOULD HEIGHT	mm	1500
	MIN. MOULD HEIGHT	mm	700
	SPACE BWTWEEN TIE-BARS (W×H)	mm	1450*1350
	HYDRAULIC EJECTOR FORCE	kN	380
	HYDRAULIC EJECTOR STROKE	mm	400
	EJECTOR NUMBER	n	25
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	38+38+38+38
	HEATING CAPACITY	KW	103.5
	MACHINE DIMENSION (L×W×H)	m	14*3.3*4
	MACHINE WEIGHT	t	87.5
	OIL TANK CAPACITY	L	2000

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many well-known merchants
7.Client in Malaysia

---
