Noblest Argon Storage Stainless Steel Tank

Product Description

Descriptions of Cryogenic Storage Tank
NOBLEST Cryogencic Storage Tank series products are used in widely applications, including metal processing, medical technology, electronics, water treatment, energy generation and the food industry. Nowadays,industrial gases are being delivered to customers in liquid form at cryogenic temperatures, enable to store them for later use. NOBLEST offer cryogenic tanks for the following liquefied gases:
Liquid nitrogen (LN)
Liquid argon (LAr)
Liquid oxygen (LOX)
Liquid carbon dioxide (LCO2)
Liquid natural gas (LNG)
Liquid nitrous oxide (LN2O)

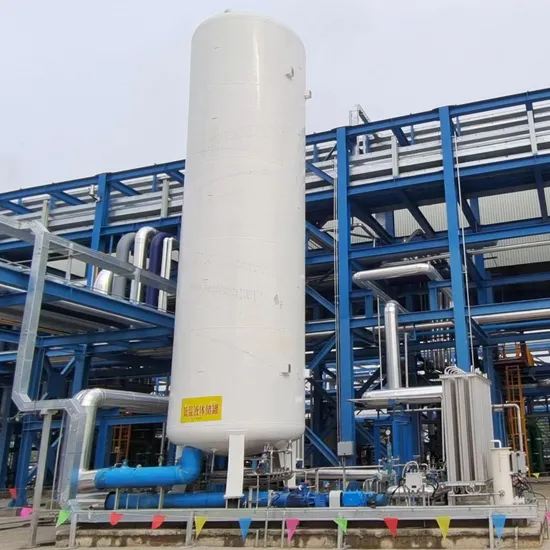

The cryogenic tank which Noblest provided is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessel and pipe are made of stainless steel to ensurecleanliness completely.
The outside shell is adopted with sand blasting,purging and spraying,specially coated withanti-corrosion paintingto ensure outstanding insulation.
We also can customize cryogenic storage tanks with volume up to 200m3 or higher based on end-user's demand , we often supply the whole set equipment in industrial gas skid or gas evaporator stations such as vaporizers, pressure regulating and metering skids, buffer tank, combined pressure regulating device, PLC control system and so on.
Specifications:

Design Temperature:	-196ºC~50ºC
Volume:	2~250m3 or Customized
Medium:	Liquid oxygen,argon,nitrogen,LNG,CO2,ethylene,etc
Working pressure:	0.2~3.5Mpa or customized
Placement Type:	Vertical or Horizontal
Certification:	ASME, GB150,CE
Insulation Method:	Vacuum powder/ Polyurethane foam/ High vacuum winding
Brand:	NOBLEST
Lead Time:	30 working days
Material:	Stainless steel / Carbon steel

Advantages:
★
Tank adopts with high vacuum winding insulation design and auxiliary high efficient vacuum
maintain
technology, result to a good heat insulation effect and less liquid evaporation
★
Body adopts with large diameter design,low vertical transport height,to ensure product performance,save more costs when transportation
★
Main structure is compact,footprint is small,installation is fast and convenient.
★
The pipe layout is neat and clearly,top of the tank is designed with whole forging welding structure to prevent gas or liquid leakage which caused by thermal expansion and cold contraction.
★
Option selected
flow meter
, remote monitoring,can be achieve digital and information management .

---
