570L Full-Automatic Edge Banding Machine for Aluminum and Wood Materials

Product Description

Product Parameters

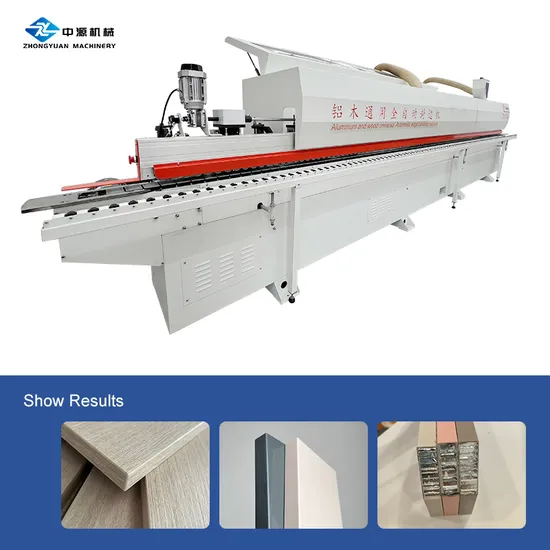

570L Automatic Aluminum and Wood Universal Straight Line Edge Banding Machine:
The 570L fully automatic aluminum-wood universal linear edge banding machine is an efficient and versatile equipment suitable for edge banding of various panels such as aluminum and wood. It adopts dual-motor pre-milling and contour tracking design to ensure perfect edge banding effect, easy operation, and support mass production. 570L Automatic Aluminum and Wood Universal Straight Line Edge Banding Machine Features:
1.Dual motor pre-milling: improve the accuracy and quality of edge banding. 2.Profiling tracking design: adapt to the edge banding requirements of different boards. 3.Rotatable touch screen: one-key parameter switching, intuitive operation. 4.Automatic feeding device: side plate structure, conveying speed up to 20 meters per minute. 5.Whole aluminum profile pressure beam: no welding, high precision, beautiful and generous. 6.Dual diamond knife pre-milling: improve the flatness of the board milling and extend the service life. 7.Three-in-one fast melt glue box: compatible with PUR and EVA glue, easy to operate. 8.Multi-pass pressing unit: ensure that the board and edge banding fit tightly. 9.Quick head and tail: improve production efficiency and accuracy. 10.Trimming unit: combination of rough trimming and fine trimming to ensure smooth edge banding. 11.Up and down purge design: effectively remove excess glue lines and debris.
570L Automatic Aluminum and Wood Universal Straight Line Edge Banding Machine Advantages:
1.Efficient production: high conveying speed and automated operation improve production efficiency. 2.Versatility: suitable for a variety of panels and edge banding materials. 3.High precision: pre-milling and contour tracking ensure edge banding quality. 4.Easy operation: intuitive touch screen and automated functions simplify the operation process. 5.Durability: high-quality materials and precision design improve equipment durability. 6.Flexibility: supports the processing of panels of different thicknesses and widths. 7.Stability: well-known electrical component brands provide stable operation. 8.Cost savings: reduce material waste and automatically record production quantities. 9.Easy maintenance: design considers maintenance convenience and reduces maintenance costs.

Thickness of edge band	0.4-3mm	Polishing motor	0.55kw×4/1400rpm
Board thickness	9-55mm	Cartridge heater	2kw
Conveying speed	16,18,20 m/min	Tracking chamfering motor	0.37kw×2 frequency conversion speed 18000rpm
Conveying motor	3.7Kw40 axis	Auxiliary heating	0.15kw
Glue box motor	0.55kw	Electric lift motor	0.37kw
Front and rear flush motor	0.37kw×2 frequency conversion speed regulation 12000rpm	Total power	16.5kw
Upper and lower roughing motor	0.55kw×2 frequency conversion speed regulation 18000rpm	Overall dimension	6910×830×1600mm
Upper and lower finishing motor	0.55kw×2 frequency conversion speed 18000rpm	Pre-milling motor	2.2kw/2

Detailed Photos
Product Application
Company Profile
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.Q2: Can your edge banding machine use PUR adhesive? A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.Q3: Are you a factory or a trader? A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.Q4: How should I make the payment? A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.Q5: How long is the delivery time? A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
