S212-3L Vacuum Negative Pressure Constant Speed Stirring Jacketed Glass Reactor

Product Description

S212-3L vacuum negative pressure constant speed stirring Jacketed Glass Reactor Product Description

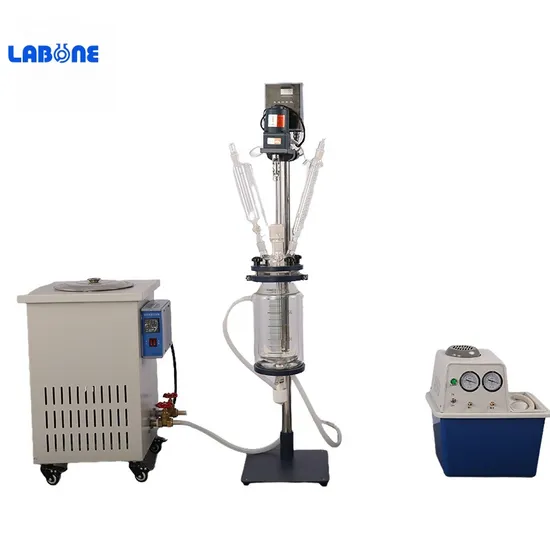

S212-3L Jacketed Glass Reactor
Brief Introduction:
The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to uniformly stir the raw materials, so that the material can fully react in the kettle body. The glass interlayer can be externally connected with high temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle. And other operations; external refrigeration cycle equipment can also be used to react to low temperature reaction in the kettle; if there is heating and cooling in the material reaction process, external high and low temperature circulation devices can be used. Moreover, the contact parts with materials are all made of high-temperature and corrosion-resistant high borosilicate glass and polytetrafluoroethylene material, which is especially suitable for the reaction of easily decomposing denatured biological products, and is not easy to react with various materials.
Working Principle
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L,200L, all of which have the function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display function in the kettle.
It can be used together with the vacuum pump to improve the working efficiency; the cooling coil of the glass condenser can be used together with the low temperature coolant circulating pump to improve the recycling efficiency. Please purchase the matching equipment at the discretion of the customer. The kettle body interlayer can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.
Detailed Photos
Product Parameters
Specifications

Model	S212-1L	S212-2L	S212-3L	S212-5L
Glass Material	GG-17	GG-17	GG-17	GG-17
Frame Material	304 SUS	304 SUS	304 SUS	304 SUS
Reaction bottle capacity	1L	2L	3L	5L
Jacketed Capacity	0.4L	0.5L	0.6L	0.8L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover	5	5	5	5
Discharger port distance to ground	30mm	30mm	30mm	30mm
Temp. range	-80-250ºC	-80-250ºC	-80-250ºC	-80-250ºC
Vacuum degreee	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-800rpm	0-800rpm	0-800rpm	0-800rpm
Stirring diameter	8mm	8mm	8mm	8mm
Stirring power	40W	40W	90W	90W
Coltage(V/Hz)	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Dimension(mm)	350*345*1000	350*345*1000	350*410*1250	350*410*1250
Plate size(mm)	325*345	325*345	325*410	325*410
Packign size(mm)	1200*480*400	1200*480*400	1380*500*400	1380*500*400
Packign weight(KG)	32	32	38	38

Certifications
Packaging & Shipping
Company Profile
Zhengzhou Labone Instrument Co., Ltd(Labone) is located in Zhengzhou City, Henan Province, China. Our company specializes in international export business of reaction equipment, distillation equipment, drying equipment, purification equipment, chemical machinery, laboratory equipment, analytical instruments, etc.
Over the past 20 years, it has exported products to more than 100 countries in the world. It is one of the largest and most comprehensive instrument manufacturers in China. Our products are sold to Asia, Africa, Antarctica, South America, North America, Europe, and Oceania.
Customer feedback: Our Advantages
Professional FactoryLABONE 22 year's focus on chemical machinery industry, 9 years of export in chemical industry, professional, dedicated and persistent.Special CustomizedOne-to-one professional customization is available, and we will recommend it to you based on the size of the factory and the size of the output.Delivery speedSamples are produced in three days and shipped in seven days, shortening the delivery cycle.Quality ControlAll materials are made of high-quality materials that have passed national quality inspection and are safe and reliable.After sales serviceAll products of LABONE are guaranteed for one year, lifelong maintenance, 24 hours after sales technical support and service hotline.
FAQ
Q1: Why Choose LABONE?(1).Professional export company with more than 9 years experience(2).Exported to more than 90% Countries(3).Turnkey Solution is no problemQ2: Is OEM,ODM service available?Most of the products are available for OEM customization.Q3:What's kind of Payment terms for customer choosing?T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...Q4:Can online video inspection before shipment?Absolutely no problemQ5: what's the MOQ ? MOQ: MOQ can accept 1setQ6:What's kind of shipment for customer choosing?Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.We can also provide reasonable solutions according to your transportation requirementsQ7: After-sale service:1 year warranty for all kinds of products;If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

---
