Sheet Metal CNC Plasma Tube Cutting Machine with Inbuilt Compressors

Product Description

A : The structure and configuration list seamless welding machine body 1500*3000mm working area China LGK100A Plasma source Independent control cabinet STARfire control system Automatic Torch height controller Starcam software 2GB processing file high precision square guide rail high precision ball screw China high precision stepper motor Multi-function tool box Efficiency exhaust smoke system Easy feeding slide material system High quality soft electricity cable can be bend for 1.5 million times All the necessary parts for machine working B :The main parts photo

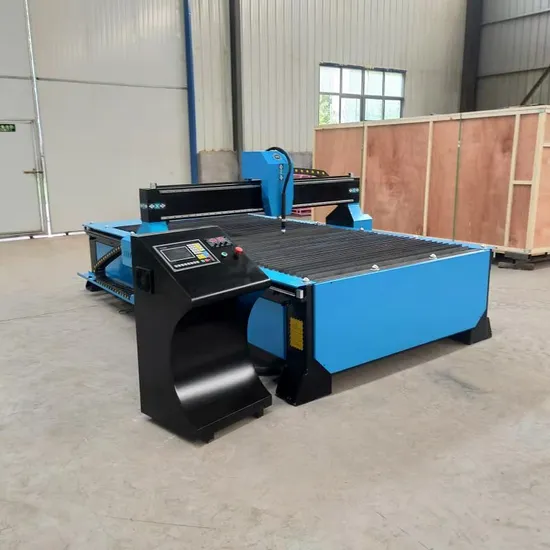

1530 100A plasma cutting machine (high configuration)
China 100A plasma source	STARFIRE Microstep control	Automatic Torch height control	Software starcam
Independent control cabinet	Heavy duty Machine body	Standard export wooden case	2G processing file
stepper motor & driver	Smoke exhaust system	Rack and gear	Multi-functional tool box

C : The Technical parameter

Model	1530 100A Plasma cutting machine (high configuration)
X,Y working area	1500*3000mm
Z working area	150mm
Packing dimension	4000mm*2280mm*1850mm
Lathe bed	Very thick steel structure
Machine Power	8.5kw
Working voltage	380V three phase 60hz
Reposition precision	0.02mm
Processing precision	0.1mm
Maximum cutting speed	12000mm/min
Torch Height control mode	Automatic
Cutting thickness	Max 25mm carbon steel
Plasma power supply	LGK100A
Control system	STARfire
Motors	Stepper motor
Software	Starcam
Weight	1600KG
Plasma Air Pressure	Max.0.8Mpa
Working Temperature	-10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension	7 Inches
