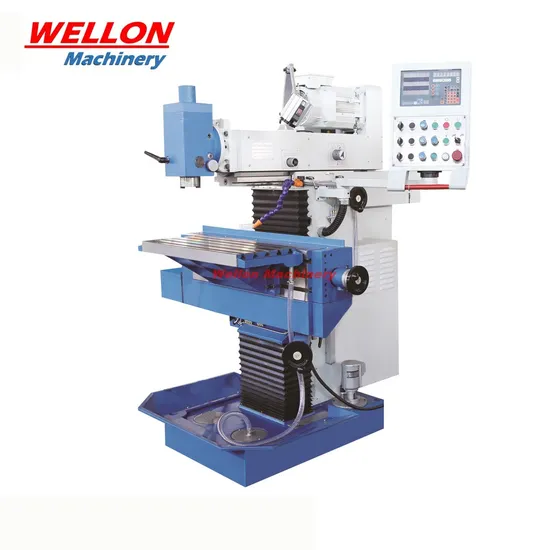

Universal Tool Milling Machine XL8140 Mill Machine Price

Product Description

Products Description:
Performence Features:
Featuring High Flexibility, High Accuracy and High Efficiency, the universal tool milling machine has a wide variety of applications, ie drilling, milling & boring on tools, jigs, moulds and other complex jobs in instrument, workshops as well as training.
High Flexibility
Combination of H & V spindles
Designed with flexible modules
Ideal for workshop & training
High Accuracy
Variable spindle speeds in 2 steps
Servo motors on X, Y and Z axes
Ball screws on X, Y and Z axes
High Efficiency
Centralized operation panel
E-handwheel or AUTO operation
Automatic lubrication
Technical parameter:

Model	XL8140
Horizontal table size (L x W)	800 x 400 mm
T-slots (pc*size*center distance)	6*14*63 mm
Vertical table size (L x W)	890 x 225 mm
T-slots (pc*size*center distance)	3*14*63 mm
Max. table load	200 kg
X/Y/Z axes travel	500/400/400 mm
Spindle taper (H. & V.)	NT 40
Spindle speeds (H. & V. variable)	40 - 2000 rpm stepless
Stroke of vertical spindle quill	60 mm
Distance from spindle nose to horizontal table surface	135-535 mm
Distance from spindle center to horizontal table surface	105-505 mm
Feed rate (X/Y/Z axes)	10 - 1000 mm/min
Rapid traverse (X/Y/Z axes)	1200 mm/min
Feed motor power	1.1kw
Main motor power	3.7 kW
Feed motor torque (X/Y/Z axes)	7.7/7.7/10 Nm
Machine weight	1550 kg
Machine dimensions (L x W x H)	1500 x 1700 x 1800 mm

Standard accessories :
3 axis DRO
Electrical Hand wheels
Ball lead screws
Complete tools with the machine
Milling cutter arbors and washers 22mm 27mm
Reducing sleeves
Spring collets and collet chuck
Optional accessories :
Universal Dividing head
Machine Vice
Rotary table
Universal angular table
