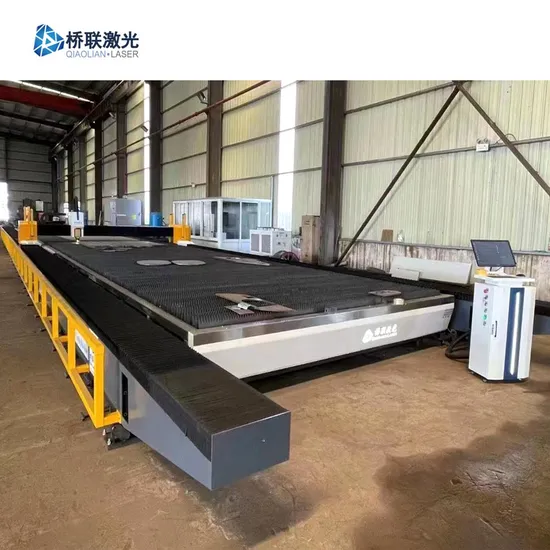

High Power Gantry Steel Laser Cutting Machine Name 12000 15000 20000 30000 40000 Watt

Product Description

High power gantry steel laser cutting machine name 12000 15000 20000 30000 40000 watt Product Description
I.Metal Laser Cutting Machines Features
1.It is suitable for high-power lasers to cut medium and thick plates. The laser can be selected from 6000W-40000W. Long-term batch cutting of 6-50MM plates.

2. Large format, wider selection of processing format.
Width : 2500-5000mm, length: 8000-26000mm.

3. Segmented splicing bed structureThe segmented bed can be customized in length to prevent deformation. Modular installation, efficient and convenient.The separate structure of the material table and the bed is more suitable for thick plate cutting without heat transfer.

4. Perfect dust removal and environmental protection systemSectional double suction type dust removal design structure, hurricane suction, strong negative pressure, so that dust and smoke move with the wind.In an area of 1 meter, always keep the air door in one area open to smoke dust, and the air door in other areas is closed, the wind is strong, and the dust removal is smooth and clean.
II. Advantages 1.Steel Plate Welding Bed
1)Our Metal Laser Cutting Machines body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.
2)Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;
2. Cast Aluminum Beam Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
3. High-end Intelligent EtherCAT Bus System FSCUT8000 is EtherCAT bus system designed for ultra high power fiber laser above 8KW, featured by out of box service, easy to install and adjust, full solution functions. It supports customization, automation and informatization solutions, is the leading edge EtherCAT laser cutting control system on the market.

4.Intelligent bus control cutting head, Active Collision Prevention It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently;Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.
5.Imported Parts, Precision Guaranteed

Equipped with dualhigh-powered servo motors and drivers which from German	Core transmission parts like speed reducer and gears are imported from Japan	High-precision racks,guide rails and ball screws are produced by world-famous brands.

6. Quality Control System
Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;

Product Parameters
III. Metal Laser Cutting Machine Parameters

Model	JLH8025	JLH10025	JLH12025	JLH12030	Other size can be customized
Power	6000W-80000W
Working Area (L*W)	8000*2500mm	10000*2500mm	12000*2500mm	12000*3000mm	Width: 2500-5000mm.length:9000-26000mm
X/Y-axis Positioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
X/Y-axis Repositioning Accuracy	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Positioning speed	70m/min	70m/min	70m/min	70m/min	70m/min
Max. Acceleration	0.8G	0.8G	0.8G	0.8G	0.8G

*The above data are for reference only, subject to the actual product!
IV. Customers


V. Cutting samples of Metal Laser Cutting Machines
Company Profile
Certifications
Other Related products
Single table laser cutting machine Exchange table laser cutting machine Sheet &Tube laser cutting machine
Tube laser cutting machine Fiber laser welding machine CNC plasma cutting machine

---
