High Speed Automatic Blankilocking Screw Machine/3 Axis Automatic Desktop Robot Screw Driver /Screw Tightening Machine

Product Description

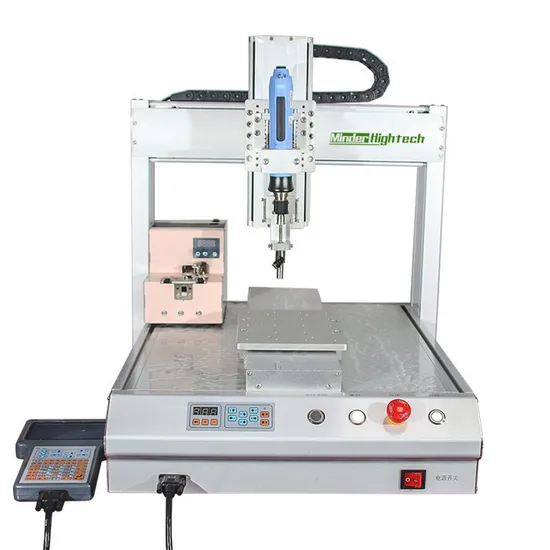

Product Description Product Description MD-DH-T4411XF Adsorption automatic lock screw machine includes BASIC interpreter, simple programming method, direct handle teaching, can directly input the coordinates of the lock screw hole position, can also teach the position of the lock screw hole, reproducible position coordinate. Using three-axis double-spinning robot and DSP motion control algorithm to link, the fastest speed can hit a screw in 1 second. One person operation is equal to 2-5 people manually locked. Application Widely used in assembly of household appliances industry (electric kettles, air purifiers, hair dryers, televisions, air conditioners, washing machines, etc.) Suitable for machine watches, industrial power supplies, motors, circuit boards, PCB, automotive electronics, TV set-top boxes, toys, mobile phones and other products to lock.

Model	MD-DL-T3311XF	MD-DL-T4411XF	MD-DL-T5511XF	MD-DL-T53311XF
Stroke X	300mm	400mm	500mm	500mm
Stroke Y1	300mm	400mm	500mm	300mm
Stroke Y2	0	0	0	300mm
Stroke Z	100mm	100mm	100mm	100mm
Material size	300*300	400*300	500*300	300*300
Rated speed	500mm/s (X-Y-Z) ,Max:1000mm/s
Screwer No.	Default 1 PC(optional 2 PCS)
Drive	Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode	Point to point; line; circle
Positioning accuracy	+- 0.02(mm)
Program	Control Teaching Box/PC
Screw feed mode	Vacuum suction
Screw feed speed	60PCS/Min
Screw driver	SDL series Servo motor screw driver(optional others)
External	RS232
Screw size	M1.0-M5.0
Screw length	4-16mm
Torque range	0.03-45kgf.cm
Lock speed	1.5s/ PCS
Program storage	100groups/1000points per group
Power	2*220V50Hz
Air	0.5Mpa

FAQ 1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Western Europe(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Mid East(10.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese

---
