Vertical Knee-Type Milling Machine (X5035)

Product Description

Vertical Knee-Type Milling Machine (X5035)

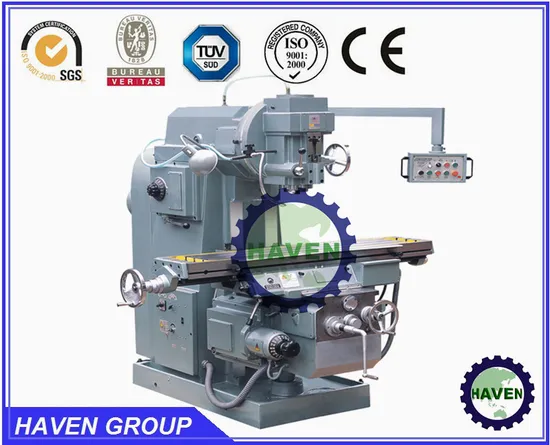

(Picture for reference)
Milling machine: The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, milling chuck, Digital readout (2 dimensional or 3 dimensional).
Standard Accessories
Milling-cutter Mandrel
Wrench, Milling cutter Mandrel, wrench
Milling machine with the middle set of taper
Milling drawbars, wrenches, Oil gun
Nut, Foundation screw
Optional
Dividing head
Milling chuck
Machine vice
Rotary table
Digital readout

Item	Parameter
worktable area(width*length):	350*1600mm or 350*2000mm
Max. longitudinal travel(manual)/(power)	1000/900mm or 1400/1300mm
Max. transversal travel(manual)/(power)	300/280mm
Max. vertical travel(manual)/(power)	430/400mm
T-slots(number of slot-width*pitch):	5-18*65mm
Distance between spindle to table surface	50-450mm
Spindle taper	7: 24/ISO50
tool bar diameter	32-50mm
vertical milling head max. swivel angle	± 45
Spindle axial travel	80mm
Spindle speed range	18steps: 30-1500rpm
Milling head motor	7.5KW
Feed motor	1.9/1.3kw
coolant motor	0.125kw
Package size(L× W× H)	2190× 2010× 2250mm
Machine Weight	3200/3500kg

WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

---
