High Power Ja Longi Jaso Jinko Trina Half Perc 144 Cells 9bb Monocrystalline Module 450W 460W 480W 500W 600W 700W 1000W 182mm Mono PV Solar Energy Panel

Product Description

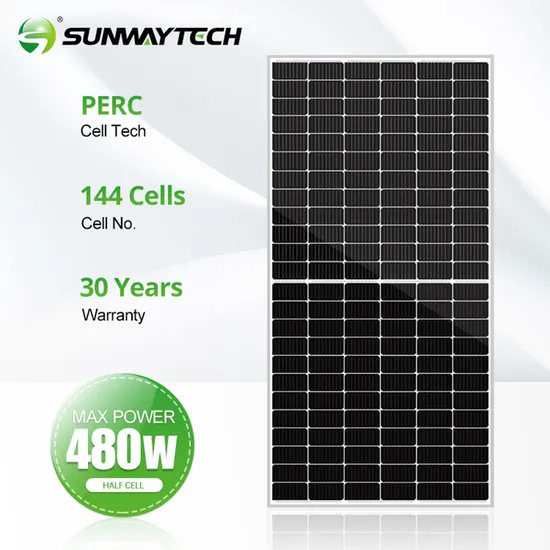

Half Cells 9bb Mono 400W 450W 500W 600W Solar Energy Panel
Perc Monocrystalline module 144 cells 166mm Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves,
and these shorter strings compose which has separated current paths.
When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing
power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced. Half-cell design brings higer efficiency:
1.New cell string layout and split J-box location to reduce the energy loss casused by shading between modules
2. Low thermal certificates for greater energy production at high operating temperature
3. Low cell connection power loss due to half-cell layout (144 monocrystalline PV module)

Electrical Parameters
Jinko Trina Half Perc 144 Cells 9bb Monocrystalline PV Module 480W Solar Panel
Model	SW450M-144 ~ SW480M-144
Encapsulation	Class/EVA/Cell/EVA/Backsheet
Maximum Power Pmax(W)	450W	460W	470W	480W
Maximum Power Voltage (Vmp/V)	41.00	41.20	41.80	42.20
Maximum Power Current (Imp/A)	10.98	11.10	11.22	11.34
Open-circuit Voltage (Voc/V)	49.50	50.00	50.50	51.00
Short-circuit Current (Isc/A)	11.42	11.54	11.60	11.79
Module Efficiency (%)	20.37	20.82	21.27	21.73
Power Tolerance	0~+5W
Temperature Coeffcient of Isc	+0.059%/ºC
Temperature Coeffcient of Voc	-0.330%/ºC
Temperature Coeffcient of Pmax	-0.410%/ºC

Product Parameters
Product Packaging
Our Factory
Manufacturing systems are equipped with sophisticated scheduling and dispatching capabilities, automated material handling
functionality, automated manufacturing systems, and smart devices utilization.
All cells and modules must past through a list of 48 different tests to ensure that the visual, optical, electrical, physical, and
mechanical properties of the products meet high standards before reaching customers Company Profile
Project Case
Certifications
FAQ FAQ:
What's your main products?
Solar system, solar panel, inverter, controller, battery and mounting system and all the related soar power accessories.
We are a manufacturer with export license.
Could you print our company logo in nameplate and package?
Yes, we can do it according to your design.
Can you support OEM and on-site installation?
Yes, as a professional solar system manufacturer, we can offer our clients OEM and on-site installation,
fully support and assistance in service, the most competitive price with absolutely high quality products.
How does your factory carry out quality control?
Quality is priority. Sunway people always attaching great importance to quality controlling from the very beginning to the end.
We have professional QC team to carry out the Quality control.
What is your advantage in Solar Energy System
Automatic production line with international advanced production equipment from Japan and Germany.
Integrating the first class manufacturing engineering & management system.

---
