Mss Quad Port Gigabit Ethernet Card From China with Trademark: Mss

Product Description

Product Name: China Origin Gigabit Quad Port Ethernet Card Company Name: Shanghai Mss International Trade Co., Ltd. Keywords: China Origin Gigabit Ethernet Card, Quad Port Ethernet Card, Gigabit Quad Port Ethernet Card, Gigabit Ethernet Card for Microscope, 4 Port Gigabit Ethernet Card, Gigabit Ethernet Card with Wireled, Microscope Gigabit Ethernet Card, Poe Network Card for Microscope, Quad Port Poe Network Card, Industry Poe Network Card, Gigabit Ethernet Card Accessories, Gigabit Ethernet Card for Network, Quad Port Gigabit Poe Card, Industry Gigabit Poe Card, Poe Network Card with Quad Port, China Origin Ethernet Card Accessories, Microscope Gigabit Network Card, Gigabit Ethernet Card for Industry, Quad Port Wireled Card, Ethernet Card for Microscope Accessories, Gigabit Ethernet Card for Wireled, China Origin Gigabit Quad Port Card, Poe Network Card for Microscope Accessories, Industry Gigabit Card with Quad Port Specifications: MSS-APOE4

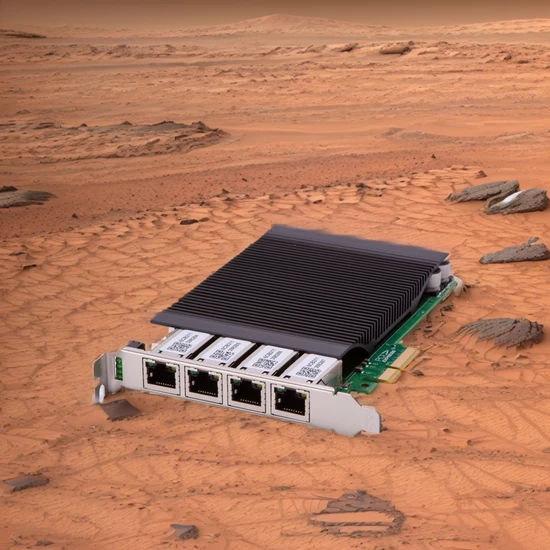

Description: The China Origin Gigabit Quad Port Ethernet Card (MSS-APOE4) is a high-performance card designed for various industries. It provides reliable and fast Ethernet connectivity with four ports, making it ideal for network applications, microscopes, and other industry-specific needs. This card is compatible with wireled connections and comes with accessories for easy installation and use. Trust Shanghai Mss International Trade Co., Ltd. for quality and innovation in Ethernet card technology.
Product Description Introducing the single-port Power over Ethernet (PoE) adapter card from Shanghai Mss International Trade Co., Ltd. This high-performance adapter card is designed to meet the reading habits of English-speaking natives, providing a reliable and efficient solution for powering external devices.
1. Single-port PoE output power consumption up to 30W, allowing for the seamless operation of power-hungry devices. Additionally, it features an external large 4Pin power supply replenishment interface for added convenience.
2. The adapter card offers adaptive power consumption output for external devices, supporting Class 0, Class 1, Class 2, and Class 3 power levels.
3. With a wider RJ45 pitch design, this adapter card ensures easy and secure connectivity.
4. The interface is specially designed for industrial cable access, providing a secure and stable connection between the network port and cable. It is compatible with common cable access methods.
5. Equipped with a larger heat sink, this adapter card effectively dissipates heat even in challenging environments, ensuring long-term stable operation.
6. Carefully selected thickened gold RJ5 connectors guarantee secure and reliable connectivity, minimizing the risk of disconnections.
7. The 4 8-pin RJ45 head design of this adapter card helps save valuable PCIe slot resources on the motherboard.
Upgrade your power supply solution with the single-port PoE adapter card from Shanghai Mss International Trade Co., Ltd. Experience enhanced performance, reliability, and convenience for your industrial applications.

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
