Wholesale Hose Cirmping Machine Hydraulic Hose Crimping Machine Rubber Product Making Machinery

Product Description

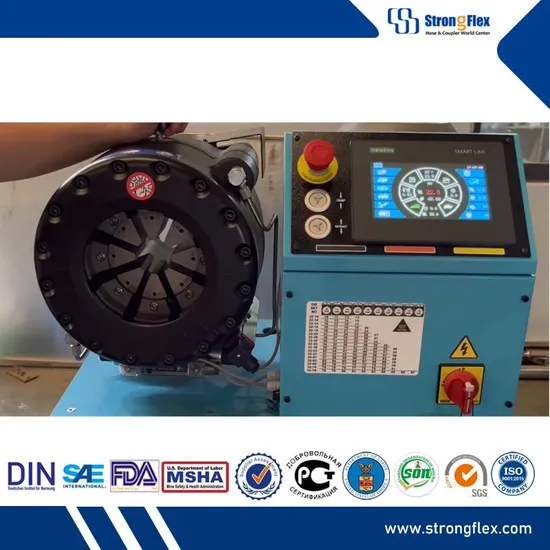

Product Description Improved Crimping Machine- P32 NEW TYPE

Capacity	In	2
Crimping diameter range *	Ø (mm)	4...87
Max opening	mm	33
Pump	l/min	12
Max pressure	bar	275
Crimping force	KN	2000
Theoretical production capacity	per hour	850
Sound pressure level	dB(A)	71
Enclosure class		IP54
Closing speed of master dies	mm/s	2.7

Frequency 50 Hz

Motor power	KW	4
voltage	V	110/220/240/380/415/440

Selecting the die set P32

D	L(mm)	Crimping range(mm)
14	55	14-16
16	55	16-19
19	55	19-22
22	70	22-26
26	70	26-30
30	70	30-34
34	75	34-39
39	75	39-45
45	90	45-51
51	90	51-57
57	100	57-63
63	100	63-69
69	110	69-75

Packaging & Shipping Packing Details : Wooden Case with plastic bags. Delivery Details : 1. Less than 10 sets will need 7 days.
2. Within 20 sets can be finished 10 days.
3. If order quantity above 30 sets, the delivery time will need 25 days.
https://strongflex2024.en.made-in-china.com/contact-info.html

Company Profile
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!

---
