Heavy Disc Harrow Working Width 3.5m

Product Description

1BZ1.8 Series Disc Harrow for 70HP Farm Tractor
Product Description
The disc harrow is mainly used for crushing soil work, and it is directly used for turning the ground when the soil quality is good. If the soil quality is not very good, the soil should be deeply ploughed with the disc plows firstly, then the soil should be broken up by disc harrows so that to make the soil ploughing effect better.
Different types of disc harrows are matched according to the models of the tractors and the requirements for deeper depth.
The disc harrows are divided into light disc harrows, medium disc harrows and heavy disc harrows. Among them, the light disc harrow and the medium disc harrow are three-point hitch with the tractor,and heavy duty disc harrow are tractor trailed.

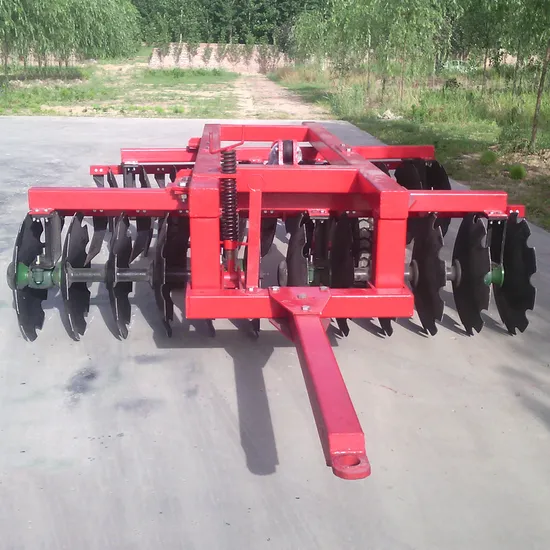

Detailed Photos


Product Parameters
Models of the Heavy-duty Disc Harrows:

Model	Working width	Working depth	Q'ty of disc	Disc diameter	Overall weight	Matched power
1BZ-1.8	1800mm	100-200mm	16pcs	660mm	1160kg	70hp
1BZ-2.2	2200mm	100-200mm	20pcs	660mm	1250kg	80hp
1BZ-2.5	2500mm	100-200mm	24pcs	660mm	1350kg	90hp
1BZ3.0	3000mm	100-200mm	28pcs	660mm	1440kg	100-110hp
1BZ-3.5	3500mm	100-200mm	32pcs	660mm	1550kg	120-130hp
1BZ-4.0	4000mm	100-200mm	40pcs	660mm	1900kg	140-150hp
1BZ-5.3	5300mm	100-200mm	48pcs	660mm	2500kg	180hp

Linkage With Tractor Shows

Related Farm Machines
Jinan AOS International Co., Ltd is professional supplier and manufacturer for all kinds of farm and agricultural tractor. Our factory has been established for 15 years and is specialized in researching, producing and distributing. Notice:Our tractor is mainly used for farming and wooden working, not for transportation. Cab, anti-over frame and sun shade is optional, you can choose it just according to your requirement. We also have many attachment that can work together with tractor, the pictures below is just for your reference.such as: Front loader; Backhoe; Lawn mower; Rotary tiller; Trailer;Snow grader etc..
FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor and attachment tools?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.

Packaging & Shipping

---
