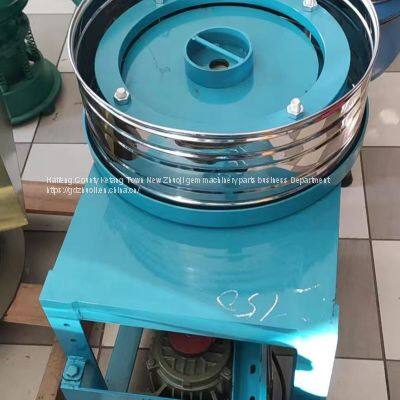

Zhuo Ji card single drive bead grinding machine
Number 810701003 Model W6207
After the chamfered stone grinding into round beads, one time can process hundreds of round beads, improve the processing efficiency and precision.
Features: The pallet lifting handwheel is used to adjust the high and low position of the pallet to adjust the distance between the grinding plate and the grinding plate. For balls of different sizes, the distance between the grinding plate and the grinding plate is different. Please adjust the maximum according to the actual situation, and the maximum processing size is within 20mm.
Main process: bead billet size should be consistent as far as possible the material also should ‚ abrasive granularity, should according to material hardness and wear resistance to determine
Output: 8mm beads can produce 200 beads in 2 minutes
Technical parameters:
Input Voltage /Voltage: AC 220V/ 380V
Output Power/POWER: 750W-1100W
Rotational Speed: 860 r/min
Dimension: 620mm×480mm×720mm
