High Quality Combination Lathe Machine Wmp290V-F for Sale

Product Description

Product Description

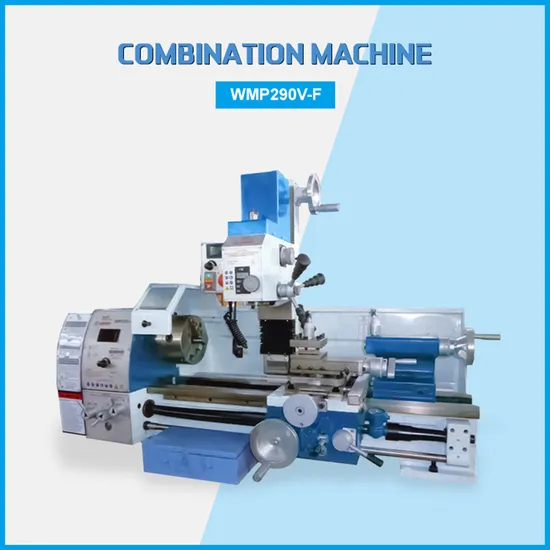

High Quality Combination Lathe Machine WMP290V-F For Sale
Model: WMP290V-F
Standard Accessories
3-jaw chuck (160mm), Splash guard, Chip tray, Drawbar, Arbor, Speed DRO for lathe, Depth ruler for mill, Speed DRO for mill, Toolbox & tools
Optional Accessories
4-jaw chuck (160mm), Backplate, Follow rest, Steady rest, Face plate, ER25 collet chuck for lathe, ER25 collet chuck for mill, Turning tools, Stand Product Parameters

Model	WMP290V-F
Distance between centers	700mm
Swing over bed	280mm
Swing over cross slide	165mm
Width of bed	180mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speeds	Variable
Range of spindle speeds	50-2000rpm
Range of longitudinal feeds	0.07-0.20mm/r
Range of inch threads	8-56T.P.I
Range of metric threads	0.4-3.5mm
Top slide travel	70mm
Cross slide travel	140mm
Tail-stock quill travel	70mm
Taper of tail-stock quill	MT3
Motor	1.1KW
MILL & DRILL
Taper of spindle bore	MT2
Spindle stroke	50mm
Spindle speed	50-2250rpm
Max. distance spindle to table	375mm
Max. distance spindle to column	185mm
Motor	600W
Packing size	1400*780*1070mm
Net weight	230kg

Product Features
1. Frequency inverter
2. 38mm spindle bore
3. V-way bed is hardened and precision ground
4. Independent lead screw and feed-shaft
5. Power cross feed function
6. Automatic feed and threading are fully interlocked
7. MT5 spindle hole gets greater capacity with $160mm three-jaw chuck
8. T-slotted cross slide
9. Top design of gearbox gets more function
10. Tail-stock may be offset for turning tapers
11. Geared mill head gets more torque
12. Mill head can be tilted +90°
13. Tolerance test certificate, test flow chart included

Factory Tour
Yantai Lift Equipment Co.,Ltd. is a joint-stock enterprise specializing in a manufacturing and marketing of Wheel alignment, Car lift, Tire changer, Wheel balancer and other auto inspection instruments. Our company has built a reputation for innovation and visionary leadership in the application of the newest technologies to automotive car service equipment.
3D Wheel Alignmennt Machine Car Lift

Tire Changer Machine Wheel Balancer Machine

Trade Info

Trade Terms	FOB / CFR
MOQ	3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port	QINGDAO
Shipment	BY SEA /AIR
Payment Terms	T/T
Payment condition	30% prepayment,balanced before shipment.
Supply Capability	1000units/month
Sample Availability	Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample Time	5-10days(depends on whether have in stock)
Lead Time	25-30days(Rush season 5-10days longer)
Packing	Metal frame&Carton
Delivery time	30-45days shipping time (depends on destination position)
Service	1% free parts;1year warranty after port of destination

FAQ
Q: Are you a factory ?
A: Yes, our factory with an area of 20,000 square meters, specializing in the production of car lift, wheel alignment, tire changer, wheel balancer etc, garage equipment.
Q: Can I have a visit to your company before placing an order ?
A: Sure, welcome to visit our company. There is a showroom in our factory, you can get all what you want about the auto equipment.
Q: How do you control your production quality ?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.
Q: Can you produce according to the samples ?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can you provide the whole workshop automotive equipment ?
A: Yes, we have 8 series contains nearly all automotive equipment. Also we have helped many customers to open their automotive workshop.
Q: May I know the Lead time ?
A: The lead time of our machine is 7 to 30 days. The specific delivery time depends on the items and the quantity of your order.
Q: What is your payment terms ?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery ?
A: EXW, FOB, CFR, CIF, DDU, DDP
Q: How long is the warranty ?
A: Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
Q: How do you make our business long-term and good relationship ?
A: We keep good quality and competitive price to ensure our customers benefit; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
