Product Details
Product Description
Product Description
Description

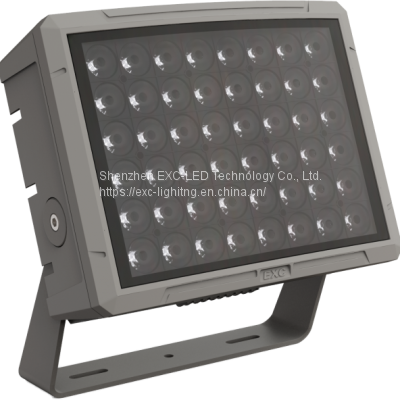

EXC-B400BBH full-color series is specially designed for outdoor LED landscape lighting by EXC-LED. It is provide with a high-strength aluminum alloy housing whose arc surface achieves the effect of self-cleaning; it could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.
Features
lThe newest generation technology: DMX512 parallel bus design
lPatented comb convection heat dissipation design
lHigh strength aluminum and low thermal resistance path cooling design
lHigh reliability modularization design
lOutdoor lighting protection and electrostatic discharge (ESD) protection design
lLoad safety design
lProjection distance: 50m
Basic Specifications
Color Range
| W(2200K-6500K), R+G+B, R+G+B+W, RGBW
|
Working Voltage
| AC220V
|
Max. Power Consumption
| 150W/200W/240W/300W
|
Light Source
| 36/48/60PCS High Power LEDs
|
LED chip Brand
| Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
|
CRI
| 80
|
Control
| DMX512, ON/OFF
|
Source Life
| 50,000 h
|
Housing
| High Strength Aluminum
|
Cover
| Tempered glass
|
Weight
| 12Kg
|
Dimensions
| 400mm x 305mm x 139mm (L x W x H, exclude Mounting Bracket)
|
Installation
| Installation with screws
|
Working Temperature
| -40°C to 60°C
|
Storage Temperature
| -40°C to 70°C
|
Protection Rating
| IP66
|
Efficiency flux
| ≥60LM/W(White),≥40LM/W(RGBW),≥30LM/W(RGB)
|
Beam Angle
| W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80° RGB-3030P7/CREE XP： 6°/8°/10°/15°
20°/30°/45°/60°/80° 3535: 30°/45°/60°/80° 5050：17°/20°/30°/45°/60°
|
Host Controller
| EXC-5200
|
Slave Controller
| EXC-2905T1
|
Signal Cable
| EXC-LED outdoor special cable
|
Physical Dimension
Unit：mm
Installation Diagram
>>
