Product Description
Product Description

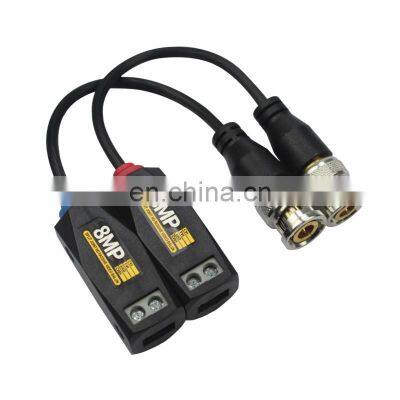

New Arrival Single Channel HD 8MP Split Joint Passive Video Balun for HD-CVI/TVI/AHD/CVBS TransceiverProducts Description• The CG-200 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The CG-200 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.• The CG-200 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Reliable Screw terminals block connection,the CG-200 eliminates costly and bulky coaxial cable.• The superior interference rejection and low emissions of the CG-200 allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The CG-200 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immu- nity ensure quality video signals.ModelCG-200Product NameSingle Channel HD Passive Video BalunApplied DevicesCCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipmentVideoVideo FormatHD-TVI/CVI/AHD/CVBSOperating FrequencyDC to 42MHzMax DistanceHDCVI720P1080P4MP5MP6MP4KColor video400m300m250m250m200m200mHDTVI720P1080P3MP5MP8MPColor video200m200m180m150m150mAHD720P960P1080P3MP4MP5MPColor video400m400m300m300m250m250mColor video Mac up to 400m for CVBS cameraCommon-mode/Differential-mode rejection15KHz to 42MHz 60 dB typ ImpedanceCoax: Male BNC 75Ω unbalancedUTP: screw terminal 100Ω balancedAttenuation1.5 dB typ Max Wire TypeNetwork WiringUnshielded Twisted (for each video signal) 24-16 AWG (0.5-1.31mm)Category TypeUTP cat 5e/6Impedance100 ± 20 ohmsDC Loop Resistance52 ohms per 1,000ft (18 ohms per 100m)Differential Capacitance19 pF/ft max (62 pF/mmax)PowerNo external power required ConnectorVideo input/outputMale BNC connectorVideo input/outputScrew terminal ProtectionSurge Protectionrenewable solid state surge protectionVideo Input2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T1726, 5-1999)Video Output2KV(different mode),10/700us IEC61000-4-5/1955(GB/T1726,5-1999) MechanicalHousingABS engineering plasticBody ColorBlackDimensions(L*W*H)39mm*16mm*16mm(BNC connector & cable excluded)Net Weight37g(pair) EnvironmentalOperating Temperature-20º ~ 70º CRelative Humidity0~95% (non-condensing)Storage Temperature-40º ~ 150º CPackagingQty/Ctn250 pairsCarton size55*48*25 cmCarton weight15 kgSimilar ProductsTrade ShowCertificationsFAQQ1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
>>
