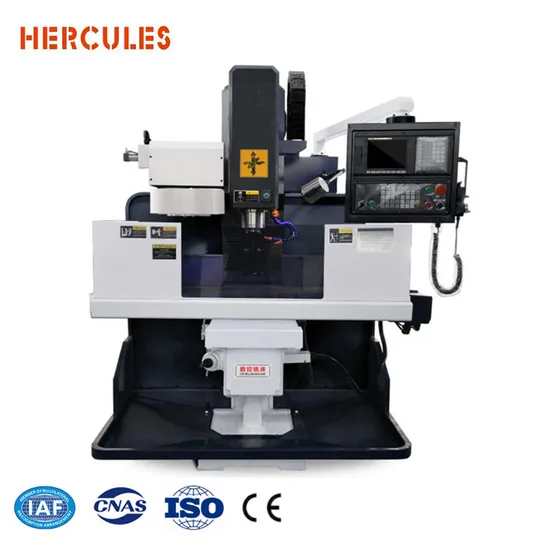

CNC-740ML Fresadora 8 tools ATC CNC Milling Cutting machine

Product Description

Hercules CNC Milling Machine
Features:
1. Cost-effective Type, it could work similar to the small VMC, but price is much competitive
2. BT40 spindle taper, 8000rpm speed, same as the VMC spindle
3. Auto tool changer with 12 tools, it's sufficient for most workers' needs
4. Large working table 1470*305mm
5. Optional 4th axis rotary table, all 4 axes could process tools simultaneously
6. GSK 980MID or Siemens 606D control system
7. High efficence with 16M/MIN raip linear guideay and repeat position accuracy 0.015mm
8. Excellent for mass production for spares such as Alu. Steel ,Brass and kinds of alloy suitable
Specification:

Specification	Unit	CNC-740ML
X a-xis travel	mm	950
Y a-xis travel	mm	400
Z a-xis travel	mm	450
Distance from spindle nose to worktable	mm	120~570
Distance from spindle center to column	mm	385
Table size(L×W)	mm	1470×305
Max.load bearing of worktable	kg	100
T slots(Width×No.)	mm	15.88×3
Max.Spindle speed	rpm	50-8000
Drive type(Spindle)		Belt type
Fast feed(X/Y/Z axis)linear guideways	m/min	14/14/14
Spindle taper		BT40
Tool Capacity	pcs	8
Max.Tool Weight	kg	6
Tool Changer		Funnel type
Tool Changing Selection		Roller Gear Cam
Tool Change Time	sec.	6-10
Main Motor	kW	3.7
X/Y/Z Feed Motor	kW	X/Y/Z:1.8/1.8/3.75
Machine size	mm	2000×1600×2400
Machine weight	kg	1,850
Positioning accuracy	mm	0.015/300
Repetitive positioning accuracy	mm	±0.008
Control system		980MDI
Hercules Machinery Equipment Ltd.

Standard Accessories:
1. Automatic lubrication system
2. Coolant system
3. Work lamp
4. Tool box
5. RS232 & USB interface
6. Tool Changer
