Vertical Cattle Feed Mixer Wagon Dairy Farm Equipment Tmr Sheep Feed Crusher Mixer

Product Description

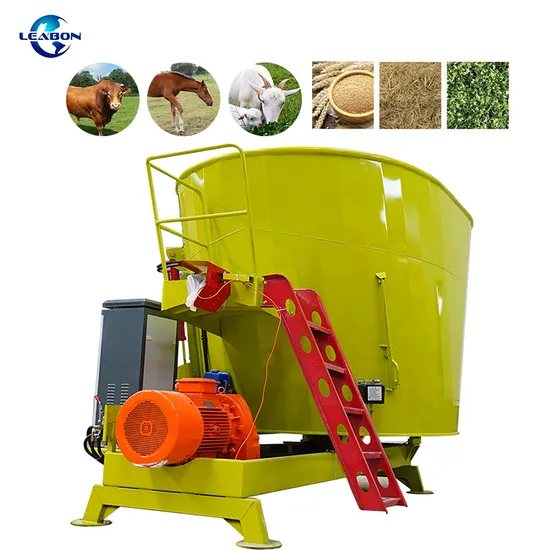

Vertical Cattle Feed Mixer Wagon Dairy Farm Equipment TMR Sheep Feed Crusher Mixer Introduction of TMR Feed Mixer
Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency. The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality, reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.
Product advantages
1. It can be directly silage and a variety of straw, straw and other fiber-based feed into the mixer chopped, mixed, stirring speed, each batch of feed cutting mixing time of 30 minutes, according to the different tank volume, each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.2.Every feeding can take appropriate amount and balance all kinds of elements and nutrientions, effectively avoid the unequal nutrient intake caused by the cow's picky food, and reduce feed waste.3.Prolong feeding time, can increase feed intake, increase lactation amount, and prevent the drop of milk fat.4.It is beneficial to reduce the postpartum disease, the ruminant function is stable, PH change is small,can improve the digestibility, good to maintain the health of the dairy cows.5. TMR is allowed to feed raw material with poor palatability. Mixing with silage can conceal its odor and reduce the cost of feeding.6.It can make the formula, feeding, management and library more accurate, and it is easier to mechanization than personnel management.7.In the place where the roughage is limited, the TMR feed mixer can reduce the amount of coarse feed in the diet and replace the non roughage fiber.
Horizontal Feed Mixer.

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Model	LBL-5	LBL-9	LBL-12	LBL-16
Productivity (t/h)	2-3	4-5	6-7	8-10
Power (kw)	15	22	30	22+22
Mixing Shaft	1pc major mixing shaft	1pc major mixing shaft	1pc major mixing shaft	2pc major mixing shaft
Blade Type	Large serrated knife
QTY of Blade (pcs)	5	8	8	16
Weighing System	4 sensors, 1 display
Bottom Plate Thickness (mm)	14	16	16	18
Side Plate Thickness (mm)	5	8	8	8
Dimension (m)	3.1*1.9*2.1	3.9*2.3*2.5	4.6*2.4*2.6	5.8*2.5*2.6
Weight (kg)	1900	2800	3600	5000

We can also provide Self-walking Feed Mixer

Model	LB-5N
Productivity (t/h)	2-3
Power (kw)	35HP
Blade Type	Large serrated knife
QTY of Blade (pcs)	5
Thickness of bottom plate	14mm
Side plate thickness	5mm
Weight	3300kg
Size	4500*1900*2400mm

Final Product of TMR
Related Products Shredder&TMR Silage Baler&Wrapper Animal Feed Pellet Machine Customer feedback Our company
FAQ Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.
Contact us
If you interest in our machine,please click "SEND",to get more details of the Vertical Cattle Feed Mixer Wagon Dairy Farm Equipment TMR Sheep Feed Crusher Mixer.

---
