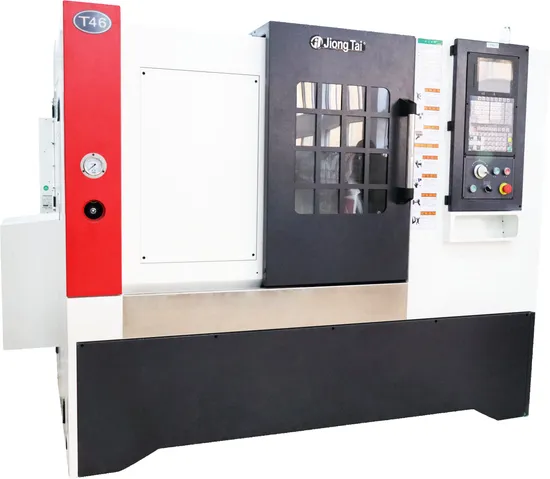

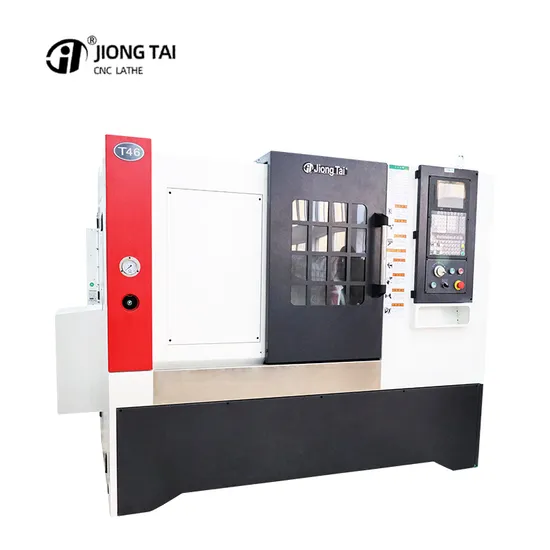

The T46 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.
| ITEM | UNIT | T46 |
| General Rules | CNC system | | GSK |
| physical dimension | mm | 2800*1700*1750 |
| Total weight of machine tool | kg | 3500 |
| Technical specifications | Maximum rotation diameter on the bed | mm | φ500 |
| Maximum processing length (one clamp and one top) | mm | 480 |
| Maximum workpiece length (two tops) | mm | 530 |
| Maximum turning disc diameter | mm | φ400 |
| Main rotation | Continuously variable speed | | |
| Main motor | kw | 11 |
| Spindle hole diameter | mm | φ56 |
| Maximum bar diameter | mm | φ46 |
| Spindle speed | rpm | 50-3000 |
| Feeding system | X-axis maximum travel | mm | 230 |
| Z axis maximum travel | mm | 500 |
| X-axis servo motor torque | Nm | 130-7.5 |
| Z-axis servo motor torque | Nm | 130-7.5 |
| X-axis rapid feed | m/min | 20 |
| Z-axis rapid feed | m/min | 20 |
| X/Z axis positioning accuracy | mm | 0.005 |
| X/Z axis repeat positioning accuracy | mm | 0.005 |
| Workpiece processing accuracy | | IT6 |
| Workpiece surface roughness | | Ra1.6 |
| Tool holder device | Tool holder | | 8 |
| Tool bar section | mm | 25*25 |
| Tool bar diameter | mm | φ32 |
