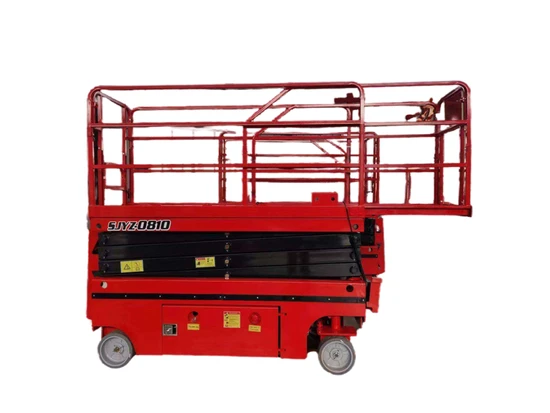

Aerial Work Platform 320kg 10m Self-Propelled Hydraulic Scissor Lift Platform Table

Product Description

Product Description
Aerial work platform 320kg 10m self-propelled hydraulic scissor lift platform table Self-propelled double mast scissor lift is a multi-functional lifting equipment, which has a wide range of applications and is used in different occasions such as various construction sites, factories and warehouses. Its main functions include cargo loading and unloading, maintenance, aerial work, equipment installation and so on. Due to its flexibility and stability, it can easily reach all corners of the building for aerial work, such as spraying of external walls, cleaning of glass curtain walls, and maintenance of buildings. In addition, it is often used in the erection and dismantling process of buildings, providing a stable and safe working platform for workers, which greatly improves work efficiency. Product Parameters

Model	MX580S	MX600SN	MX800SN	MX800S	MX1000S	MX1200S
S.W.L	230kg	230kg	230kg	450kg	320kg	320kg
S.W.L on Extension	113kg	113kg	113kg	113kg	113kg	113kg
Max.Workers Number	2	2	2	2	2	2
Working height max	7.8m	8m	10m	10m	12m	13.8m
Platform height max	5.8m	6m	8m	8m	10m	11.8m
Overall Length	1.81m	2.43m	2.43m	2.43m	2.43m	2.43m
Overall Width	0.76m	0.81m	0.81m	1.15m	1.15m	1.15m
Overall Height( Rails Up)	2.16m	2.18m	2.3m	2.31m	2.42m	2.55m
Overall Height( Rails Down)	1.82m	1.85m	1.87m	1.76m	1.91m	2.03m
Platform size(LxW)	1.67m*0.74m	2.27m*0.81m	2.27m*0.81m	2.27m*1.12m	2.27m*1.12m	2.27m*1.12m
Platform extension size	0.90m	0.90m	0.90m	0.90m	0.90m	0.90m
Ground Clearance ( Stowed)	0.09m	0.10m	0.10m	0.10m	0.10m	0.10m
Ground Clearance(Raised)	0.019m	0.019m	0.019m	0.019m	0.019m	0.019m
Wheelbase	1.36m	1.87m	1.87m	1.87m	1.87m	1.87m
Turning radius (inside)	0m	0m	0m	0m	0m	0m
Turning radius (outside)	1.64m	2.10m	2.10m	2.20m	2.20m	2.20m
Lift/Drive Motor	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/4.5kw
Travel Speed( Stowed)	3.0km/h	3.0km/h	3.0km/h	3.0km/h	3.0km/h	3.0km/h
Travel Speed( Raised)	1km/h	1km/h	1km/h	1km/h	1km/h	1km/h
Raise/Lower time	18/22sec	35/25sec	40/30sec	40/30sec	60/40sec	70/45sec
Power source	4*6V/210Ah	4*6V/225Ah	4*6V/225Ah	4*6V/225Ah	4*6V/240Ah	4*6V/260Ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Gradeability	25%	25%	25%	25%	25%	25%
Maximum Working Slope	1.5°/3°	2°/3°	1.5°/3°	2°/3°	2°/3°	1.5°/3°
Tire size	305*100	380*129	380*129	380*129	380*129	380*129
Weight	1400kg	1945kg	2100kg	2175kg	2468kg	2830kg

Detailed Photos


Main Features
STANDARD CONFIGURATIONS
1.Proportional Control
2.Inter-lock door on the platform
3.Extension Platform
4.Automatic Brake System
5.Traceless Tyre
6.4*2 Driving
7.Buzzer
8.Emergency Stop Button
9.Fault Diagnosis System
10.Automatic Pothole Protection
OPTIONAL CONFIGURATIONS
11.Airway Tube to the Platform
12.Platform Working Light Company Profile
