China Famous Brand Track Excavator Xe225dk 22 Ton 22t Crawler Excavator with Quick Hitch for Sale

Product Description

XE225DK adopts multi-function machine control system, one key to choose more than 10 kinds of machine such as crushing hammer, hydraulic shear, easy to achieve a multi-purpose machine.

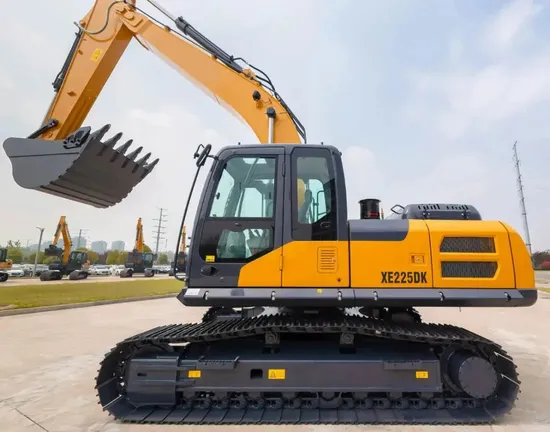

22 ton hydraulic excavator machine XE225DK adopts a high-power, large-displacement and low-noise engine, a high-pressure low loss hydraulic system, an optimized design of the working mechanism enclosure structure and a standard reinforced digging bucket largest in capacity among its peers, able to greatly improve its reliability, durability and adaptability to various working conditions; its reinforced chassis system can have the complete excavator achieve stronger adaptability to mining conditions and a longer service life.
XE225DK excavator machine is mainly applicable to municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, mines, and other earthwork construction at the advantage of sufficient flexibility, good controllability, low fuel consumption, high construction efficiency, powerful digging strength, comfortable driving environment, wide range of application and other outstanding characteristics.
Product Parameters

Model		Unit	XE225DK
Operating weight		Kg	21900
Bucket capacity		m³	1.0-1.2(1.14)
Engine	Model	/	4HK1X
	No. of cylinders	/	4
	Output power	kw/rpm	140/2000
	Maximum torque/speed	N.m/rpm	650/1500
	Displacement	L	5.3
Main performance	Travel speed	km/h	5.3/3.0
	Swing speed	r/min	11.8
	Gradeability	°	≤35
	Ground pressure	kPa	47.2
	Bucket digging force	kN	149
	Arm digging force	kN	111
	Maximum traction	kN	184
Hydraulic system	Rated flow of main pump	L/min	2×225
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Rotary system pressure	MPa	27.5
Appearance size	Overall length	mm	9625
	Overall width	mm	2990
	Overall height	mm	3100
	Width of platform	mm	2830
	Track length	mm	4255
	Overall width of chassis	mm	2990
	Track width	mm	600
	Length to center of rollers	mm	3462
	Track gauge	mm	2390
	Counterweight clearance	mm	1050
	Min. ground clearance	mm	486
	Min. tail swing radius	mm	2890
	Track height	mm	942
Working scope	Max. digging height	mm	9620
	Max. dumping height	mm	6780
	Max. digging depth	mm	6680
	Maximum depth cut for 2240mm(8 ft) level bottom	mm	6500
	Max. vertical wall digging depth	mm	5715
	Max. digging radius	mm	9940
	Min. swing radius	mm	3530
