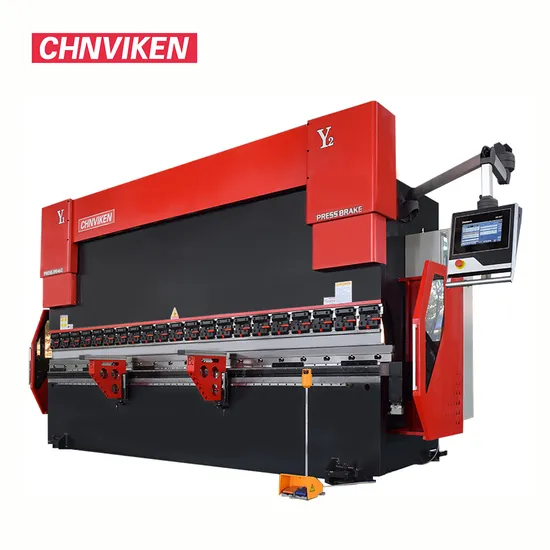

160t3200 Hydraulic CNC Press Brake with Da53t and Manual Lift Backgauge Fingers

US$7,800.00
1-5 sets
US$7,000.00
6-9 sets
US$6,500.00
10+ sets

Basic Info.

Model NO.
press brake
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Weight (Kg)
7500
Machine Type
Torsion Bar
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Showroom Location
Egypt, Canada, UAE, Australia, None
Warranty of Core Components
2 Years
Video Outgoing-Inspection
Provided
Raw Material
Sheet Metal & Steel Plate
Max Bending Width:3200mm
Motor Power (Kw):7.5
Marketing Type
New Product 2024
Key Selling Points
Automatic
Year
2024
Max Opening Height:380mm
Slider Stroke:120mm
Model:We67K-100t/3200
Bending Pressure:1000kN
Power
Hydraulic
Machinery Test Report
Provided
Transport Package
Plywood Box
Trademark
CHNVIKEN
Origin
Anhui, China

Product Description


Bending Capability 80/3200 100/3200 100/4000 125/3200 125/4000 160/3200 160/4000
Nominal Force(KN) 800 1000 1000 1250 1250 1600 1600
Worktable Length(mm) 3200 3200 4000 3200 4000 3200 4000
Column Distance(mm) 2650 2610 3100 2610 3100 2600 3050
Throat Depth(mm) 250 320 320 320 320 320 320
Ram Stroke(mm) 120 120 120 120 120 180 180
Main Motor Power(KW) 5.5 7.5 7.5 7.5 7.5 11 11


No. Component Name Details
1 Controller DELEM DA53T
2 Main Motor Siemens Main Motor
3 Hydraulic system RexRoth, Germany
4 Oil pump Sunny, America
5 Electrical components Schneider, France
6 Servo motor and driver Estun, China Nanjing
7 Grating ruler GIVI, Italy
8 Ball screw linear guide rail HIWIN, China Taiwan
9 Hydro-cylinder VIKEN
10 Bear NSK, China Shanghai
11 Punch and Die 42CrMo Material
