Vegetable Oil Flat Separtion Basket Centrifuge, Automatic Bag Hoist Upper Discharge Separator

Product Description

Product Description

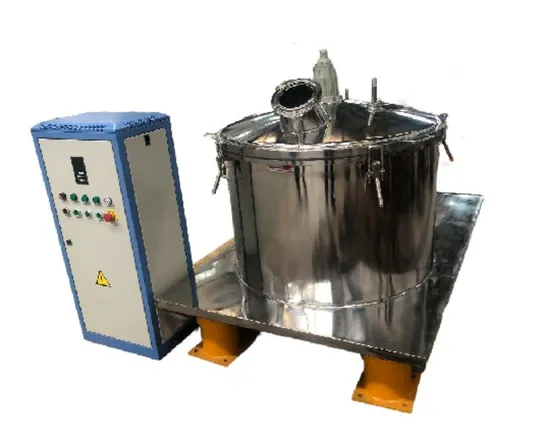

Vegetable Oil Flat Separtion Basket Centrifuge, Automatic Bag Hoist Upper Discharge Separator Product introduction of bag hoist centrifuge:
PSD centrifuge is a kind of improved centrifuge based on SD series three feet up discharge centrifuge. All parts of PSD centrifuge machine are made of stainless steel 304, a food-grade material. Features include reduced labor intensity, quick discharging, and easy cleaning filter bag, leading to a good reputation for the PSD series centrifuge machine. This centrifuge eliminates the traditional suspending type of three legs support by adopting a flat-plate counterweight and high viscosity damping agent vibration isolator for absorbing vibration. Installation does not require a concrete foundation. Company name: Zhengzhou Toper Industrial Equipment Co., Ltd.

Product Description Company Name: Zhengzhou Toper Industrial Equipment Co., Ltd.
Application Scope Our product is designed for the separation of suspensions containing solid-phase granules with a diameter greater than 0.01mm. It is particularly suitable for filtering toxic and flammable materials, making it ideal for industries such as chemical, pharmacy, food, and light industry.
Examples of Applications Examples of materials that can be processed include gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, plastic raw materials, soaps, greases, resins, food salts, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicides, insecticides, and the dehydration of mineral fines like copper, zinc, and aluminum.
Structure and Principle The drum operates at high speed, with materials entering from the top feed pipe and moving towards the drum shell due to centrifugal force. Liquids pass through the sieve pores and are discharged, while solids are retained in the drum. The filter bags containing the solid cake can be easily discharged after separation.
Features Our product allows for automatic and continuous solid-liquid phase separation. It is suitable for dewatering, concentration, grading, and clarification in various industrial settings.
Detailed Photos
Product Parameters
Technical Parameter:

Model	Drum				Separation Factor	Motor Power (kw)	Limit Height of Opening the cover	Total Weight (kg)	Dimensions (L x W x H) (mm)
	Diameter (mm)	Operating Capacity (L)	Loading Limit (kg)	Rotational Speed (r/min)
PD800	800	115	155	1500	1008	7.5	2280	1600/1800	1800x1050 x1140
PD1000	1000	170	230	1200	806	11	2590	2300/2800	2030x1300 x1220
PD1200	1200	250	340	800	431	11	2850	2800/3200	2300x1500 x1350
PD1250	1250	280	400	950	631	18.5	2850	3800/4200	2350x1500 x1370
PD1500	1500	500	650	850	607	30	3400	4800/5200	2900x1900 x1575
PD1800	1800	600	800	700	494	37	3700	7200/7800	3170x2540 x1770

Related Centrifuge
Toper hot sale other series of separation centrifuge : 01. Three foot manual upper discharge basket centrifuge
https://zhengzhoutoper.en.made-in-china.com/product/ojPmYqLGXbkB/China-Dewatering-of-Copper-Sulphate-Three-Foot-Classification-Basket-Centrifuge.html
02. High speed solid-liquid and liquid-liquid-solid separation tubular centrifuge
https://zhengzhoutoper.en.made-in-china.com/product/hygQLVPGhbWM/China-Liquid-Liquid-Solid-3phase-Separation-Stainless-Steel-Tubular-Centrifuge-Separator.html
03. 2Phase and 3phase Continuous separation LW/LWS series decanter centrifuge
https://zhengzhoutoper.en.made-in-china.com/product/IjPEiMKDXbkm/China-Automatic-Continuous-Operation-Oil-Field-Drilling-Mud-Decanter-Centrifuge.html
04. Self-cleaning automatic operation DHC series disc centrifuge
https://zhengzhoutoper.en.made-in-china.com/product/ptrROiZogaWY/China-Automatic-Disk-Stack-Centrifuge-Continuous-Separation.html
Company Profile
Company information Welcome to Zhengzhou Toper Industrial Equipment Co., Ltd. As the leading supplier of industrial equipment in China, Zhengzhou Toper specializes in providing top-quality filter and separation equipment. Our expertise extends to offering full-service solutions for filtering projects, from initial design to after-sales support. We are committed to fast supply of spare parts to ensure uninterrupted operations for our clients.
Choose Zhengzhou Toper for reliable industrial equipment and exceptional service.
All of Toper's products: Zhengzhou Toper Industrial Equipment Co., Ltd. Explore our wide range of filter press and centrifuge products designed to meet your industrial needs:
Program-controlled automatic filter press Membrane filter press Hydraulic compress filter press Mechanical compress filter press Jack filter press Cast iron plate and frame/chamber filter press Stainless steel plate and frame filter press Round plate filter press Cotton cake filter press Cardboard filter press DY belt filter press DYX high pressure belt filter press DNY rotary drum thickening/dehydrating belt filter press Triple-belt thickening and dehydrating filter press SS type three-foot upper discharge centrifuge SD type three-foot and filter bag hoist discharge centrifuge PD type filter bag hoist discharge centrifuge Centrifuge of up discharge, three foot, clean series SSB SX type manual top discharge centrifuge PS type manual top discharge centrifuge SGZ type automatic scraper bottom discharge centrifuge PGZ type scraper bottom discharge centrifuge LW series decanter centrifuge Tubular centrifuge Multi-layer stainless steel frame filter Bag filter Diatomite filter Filter plate Filter cloth Vacuum disc filter
