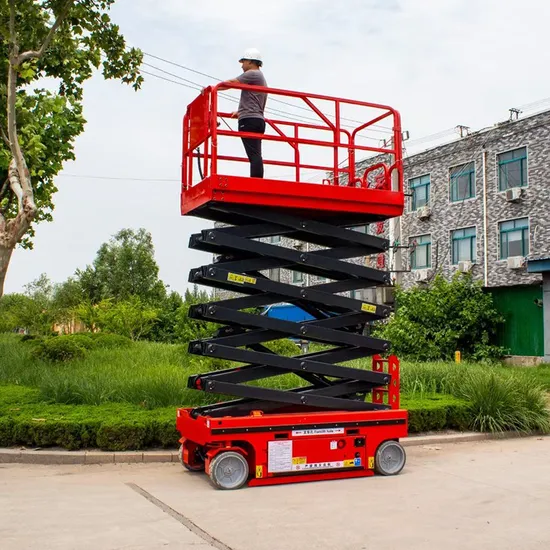

Battery Powered 6-14m Electric Movable Scissors Construction Lift Hydraulic Mobile Electric Scissor Lift

Product Description

High quality CE Euro5 EPA NEW Scissor Lift with good price
Working height 8m to 16m
Product Description

Model	MY6	MY8	MY10	MY12	MY14
Maximum working height	8m	10m	12m	13.85m	15.8m
Maximum platform height	6m	8m	10m	12m	14m
Safe working load	450 kg	450 kg	320 kg	320 kg	230kg
Extended platform safe working load	110kg	110kg	110kg	110kg	110kg
Working platform dimensions (length × width × height)	2.25×1.13×1.2m	2.25×1.13×1.2m	2.25×1.13×1.2m	2.25×1.13×1.2m	2.636×1.13×1.2m
Countertop extension size	0.9m	0.9m	0.9m	0.9m	0.9m
Minimum ground clearance	0.1/0.15m	0.1/0.15m	0.1/0.15m	0.1/0.15m	0.1/0.02m
Wheelbase	1.90m	1.90m	1.90m	1.90m	2.24m
Turning radius (inner wheel/outer wheel)	0/2.35m	0/2.35m	0/2.35m	0/2.35m	0/2.5m
Lift/Drive motor	24V/3.3kw	24V/3.3kw	24V/4.5kw	24V/4.5kw	24V/4.5kw
Lifting speed	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Machine traveling speed (retracted state)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Machine traveling speed (lifting state)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Battery	4×6V/200ah	4×6V/200ah	4×6V/200ah	4×6V/200ah	4×6V/200ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Maximum climbing ability	25%	25%	25%	25%	25%
Maximum allowable working angle	1.5° /3°	1.5° /3°	1.5° /3°	1.5° /3°	1.5° /3°
Tire	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm
Total Weight	2066kg	2208kg	2506kg	2900kg	3570kg

Features 1.Strong stability at height; 2.Non-marking tires 3.True zero inside turning radius, working well in tight areas;
4.Swing doors on both sides, easy for maintenance; 5.Extended duty cycle due to highly efficient design.
6.Safety protections: tilting sensor / overload sensor / pothole protection / automatic braking / manual lowering / automatic stop when overheated / safety valve on hydraulic cylinder
