Dy K-Bos 25HP Model 4lz-1.2t Small Combine Harvester for Rice/Paddy/Wheat

Product Description

Product Description

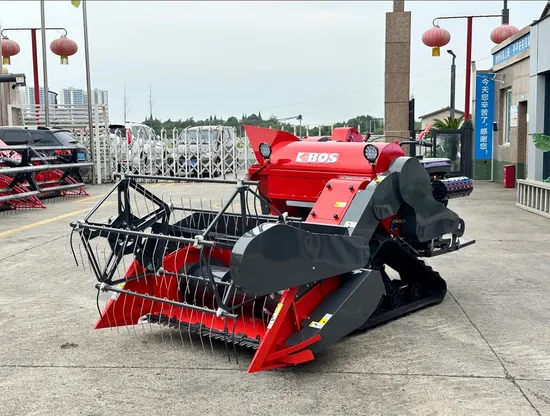

Deyang K-BOS Model 4LZ-1.2T small combine harvester, it is specially designed for small-scale field in hilly and mountain area or island area, fully-functioning cutting, threshing, cleanning and unloading. Manpower saved and efficiency improved small harvester.
Multi-functional : Standard for Rice and Wheat, with optional attachments for other granular crops.
Production plant passed and accredited to following items: ISO9001:2008, European Standard Certification CE, Bureau Veritas Certifcation BV, llAC-MRA CNAS Certification.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine.

Product Parameters:

Product Model		4LZ-1.5Pro Combine Harvester
Overall Dimension Length×Width×Heights ( mm ):		3200×1650×1350
Weight (kg)		660
Productivity of Operating Hours(hm²/h):		0.15~0.25
Engine	Engine Model	LC2V80FD
	Rated Power ( kw/hp )	18KW/24.5HP
	Engine Type	Vertical, Four-Stroke, Air-Cooled, Gasoline Engine.
	Rated Rotation Speed (r/min)	3600
Traveling System	Type of Gearbox:	Mechanical Stepped Transmission 4 (Slow,Fast,Empty,Backward)
	Rubber Track(mm):	66 x 48 x 400
	Gauge	750
	Minimum Ground Clearance (mm)	289
Cutting header	Height Adjustment	Hydaulics.
	Cutting Width ( mm )	1280
	Header auger type	Telescopic Screw Conveying
	Pickup Reel	Eccentric Tooth(off-centre) D700mm; Qty 5
Threshing System	Threshing System	Spiked Tooth Axial Flow
	Threshing Cylinder Quantity	1
	Cylinder Diameter×Length ( mm )	400 × 1060
	Cleaning Mechanism Type	Air and Screen Cleaning
Grain Storing	Manual Operation	Small Tank by Manpower

Open for customizing:

Exhibition

Production Line

---
