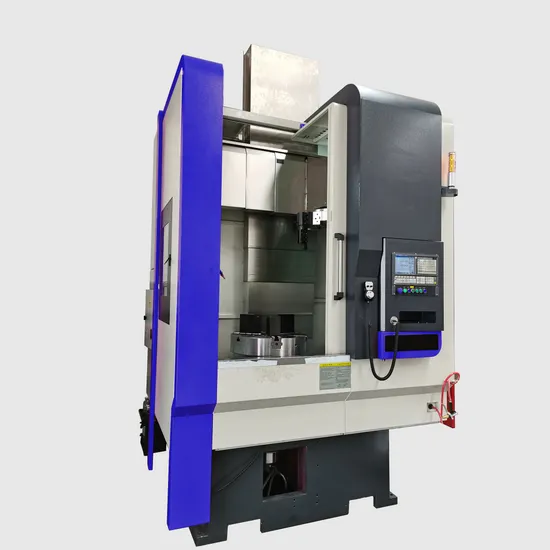

Original Vertical Lathe Vertical Lathe CNC Machining Center

Product Description

original vertical lathe vertical lathe cnc machining center
Product Description
The machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.

Main Features:
1. The machine tool is of roller type linear slide rail, with ultrahigh rigidity and overload capacity, substantially improving
positioning accuracy and bearing capacity in regard to vertical and horizontal feed movement.
2. The machine tool spindle belt pulley is connected with that of spindle numerical control servo motor through belt, equipped
with 22Kw motor for infinitely variable speed of wide range, satisfying different spindle speed required for parts rough machining
and finish machining.
3. Both the vertical and horizontal feed is controlled by servo motor automatically. The vertical direction setting Balance weight
structure greatly extend the life cycle of lead screw
4. The machine tool rest is of horizontal or vertical multi-station numerical control structure, shortening tool changing time,
and greatly improving work efficiency.
5. The upper end of spindle may be equipped with disc type workbench or hydraulic chuck based on user's requirements. The angling
cylinder (single-piston and double-piston) is applicable to the lower end of the spindle. For the control of the workpiece and the
hydraulic chuck
6. This machine tool may be equipped with domestic numerical control system of SIEMENS, KND, FANUC and GSK, also imported system optionally by users.
Product Parameters

Specification	Unit	VTC65	VTC75
Maximum rotating diameter of machine tool	mm	650	750
apindle speed range	rpm	100~1000	50~1500
cutting feed speed	mm/min	0.1~1000	0.1~1000
tool test vertical movement length	mm	550	700
tool test horizontal movement length	mm	450	700
rapid traverse speed vertically	mm/min	16000	16000
rapid traverse speed horizontally	mm/min	16000	16000
diameter of hyaraulichuck	mm	500	630
main motor power	kw	18.5	22
positioning accuracy	mm	±0.008	±0.008
repeated positioning accuracy	mm	±0.008	±0.008
Cross weight	kg	7000	9000
machine tool overall dimension	mm	1710x2050x2910	2200x1900x320

Application
CNC vertical lathes are suitable for internal and external turning, internal and external taper, arc, end face, slotting, threading, drilling, reaming, boring, chamfering of large-diameter shaft parts and disc-shaped parts. The machine has a wide range of uses, high efficiency, good stability, simple operation, and can realize high-precision processing for single or batch processing.
Packaging & Shipping
Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.
Our Services
Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile
Certifications
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
