Wire Mesh Welding Machine-CNC-Grassland Field Fence Mesh Knitting Welding Machine for Animal Fence

Product Description

Product Description

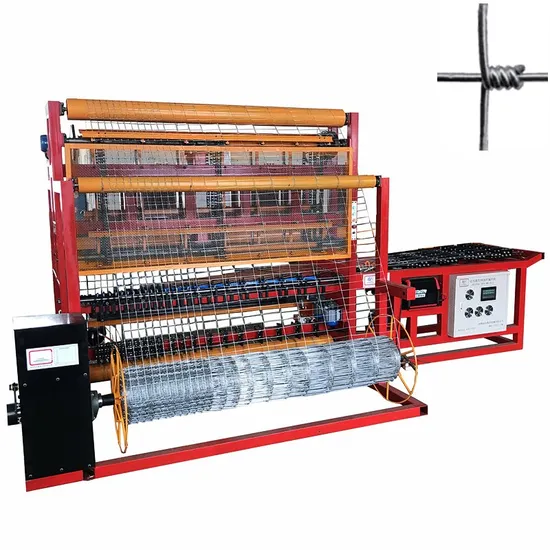

New grass fence machine
New Grass Fence Machine---The introduction of advanced European technology to improve the ordinary grassland netting machine. The most outstanding advantage of this machine is that it can produce 50 mm mesh, which meets the needs of different customers in different regions.

Product Parameters

Model	KY-NG17-1500	KY-NG19-1800	KY-NG22-2100	KY-NG26-2400
Ineer wire diamerer	1.8-2.5mm	1.8-2.5mm	1.8-2.5mm	1.8-2.5mm
Edge wire diameter	2.0-3.5mm	2.0-3.5mm	2.0-3.5mm	2.0-3.5mm
Fence height	1500mm	1800 mm	2100 mm	2400 mm
Produce efficiency	45 row/min	45 row/min	45 row/min	45 row/min
Distance weft wires	50mm-500mm (Adjustable)	50mm-500mm (Adjustable)	50mm-500mm (Adjustable)	50mm-500mm (Adjustable)
Distance warp wires	50*9+100*2+150*3+200*2=1500 (mm)	50*9+100*3+150*3+200*3=1800 (mm)	50*11+100*3+150*3+200*4=2100 (mm)	50*13+100*5+150*3+200*4=2400 (mm)
Line wire number	17	19	22	26
Weight	3500KG	4300KG	5200KG	6500 KG
Dimensions	3.0x3.0x2.4(m)	3.2x3.0x2.4(m)	3.4x3.0x2.4(m)	3.9x3.0x2.4(m)
Note: We can make machines according to customers' requirements. Please provide me with:machine width, wire diameter and grid size ширина машины, диаметр проволоки и размер сетки

Detailed Photos
Roll mesh collection system.
Roll mesh collection system will automatically adjust the tightness according to the roll mesh diameter,It's more convenient to
take away the roll mesh.
Wire mesh weaving system.
All parts of the weaving system are made of special alloy materials with high hardness, which increases the service life of the parts.
Cross wire feeding system.
The cross wire enters from the side of the machine, which can clearly separate the horizontal wire from the vertical wire, the machine runs more smoothly.
Wire cutting system.
The structure of the shearing system is specially designed to complete the shearing process quickly and efficiently and increase the product output.
Machine control system.
The control system is composed of Chinese and English,the spacing of the cross wires can be adjusted on the touch screen. Cross wire feed pipe.
All cross wires enter the machine through a separate pipe, which can ensure that the iron wire will not be wound and reduce the failure rate.Cross wire straightening device.
Each cross wire is straightened twice horizontally and vertically to ensure the flatness of the wire mesh.
Motor.
The whole machine uses high-performance motors with different powers in different positions to minimize the power consumption in production and use.
Packaging & Shipping
Packing and delivery.
All main machines are packaged in plastic and then fixed in containers. All accessories are packed in wooden cases.
Installation and training.
Training how to install the machine, training how to use the machine. Engineers available to service machinery overseas.
Company Profile
KaiYe History
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Now the company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as :Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
Main machinery
Design & production in ourfactory:
wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine, wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine.

Factory R&D Team
The factory has a strong and experienced R&D team. The average working experience of each engineer is more than 15 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.

FAQ
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
If you are interested in our machines, please contact us now,
We will provide you with professional and reasonable solutions.

---
