15kw 20HP 4-in-1 Industrial Screw Air Compressor for Industrial Sewing Machine

Product Description

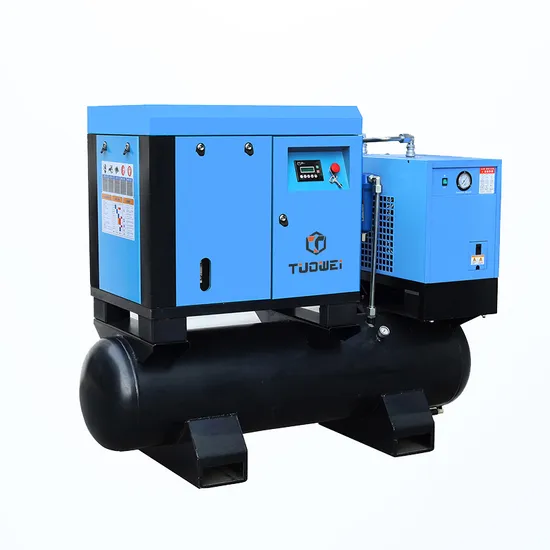

4-in-1 Industrial Screw Air Compressor
1. Efficient performance, convenience, and space saving 2. High efficiency and reliable quality
3. Power: 7.5~37KW
4. Pressure: 7~16bar
5. Capacity: 0.6~2.8m3/min

Model	Motor Power	Working Pressure		Capacity		Air tank (L)	Air Outlet	Net Weight	Dimension (mm)	Start Method	Noise dB(A)
	kW/hp	psi	bar	cfm	m3/min			KGS	L*W*H
SGAT08	7.5/10	116	8	38.84	1.1	350	G1/2''	350	1850*700*1460	Y-△	66±2
SGAT11	11/15	116	8	52.97	1.5	350	G3/4''	450	1850*750*1640		68±2
		145	10	45.90	1.3
		174	12	38.84	1.1
SGAT15	15/20	116	8	81.00	2.3	350	G3/4"	450	1850*750*1640		68±2
		145	10	74.00	2.1
		174	12	67.10	1.9
SGAT22	22/30	116	8	127.10	3.6	350	G1"	660	2050*850*1780		68±2
		145	10	113.00	3.2
		174	12	95.30	2.7
SGAT08PM	7.5/10	116	8	39.00	1.1	350	G1/2''	350	1850*700*1460	Frequency Conversion	66±2
SGAT11PM	11/15	116	8	52.97	1.5	350	G3/4''	450	1850*750*1640		68±2
		145	10	45.90	1.3
		174	12	38.84	1.1
SGAT15PM	15/20	116	8	81.00	2.3	350	G3/4"	450	1850*750*1640		68±2
		145	10	74.00	2.1
		174	12	67.10	1.9
SGAT22PM	22/30	116	8	127.10	3.6	350	G1"	660	2050*850*1780		68±2
		145	10	113.00	3.2
		174	12	95.30	2.7

Company Profile
FAQ Q1: What is the rotor speed for the air end?A1: 2980rmp.Q2: What's your lead time?A2: usually, 5-7 days. (OEM orders: 15days)Q3: Can you offer water cooled air compressor?A3: Yes, we can (normally, air cooled type).Q4: What's the payment term?A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.Q5: Do you accept customized voltage?A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.Q6: What is your warranty for air compressor?A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.Q7: Can you accept OEM orders?A7: Yes, OEM orders are warmly welcome.Q8: How about your customer service and after-sales service?A8: 24hrs on-line support, 48hrs problem solved promise.Q9: Do you have spare parts in stock?A9: Yes, we do.Q10: What kind of initial lubrication oil you used in air compressor?A10: TOTAL 46# mineral oil.
