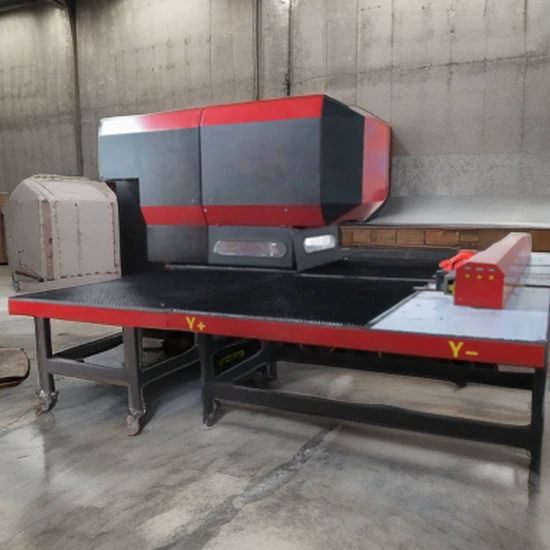

CNC Turret Punch Machine with European Quality

Product Description

Main functions and characteristics
1. Dealing with multitasks by the system in real time controlling.
2. Easily operate menu and the toolbar with friendship surface.
3. Loading program by graph menu or toolbar for choice.
4. Showing state of operating manner, punch, coordinate of workpiece, rate of punching.
5. Auto-programming by AutoCAD and performing the processing program.
6. Programming with code of ISO NC standard.
7. Editing, rewriting and saving the program.
8. Code of nesting, circulation, and other assistant function.
9. Showing self- diagnosis of the failure.
10. Code explaining, executing, grammar checking and simulation of punching.
11. Following graph and showing the process of punching in time.
12. Super parameter setting.
13. Freely choosing or changing coordinate system of track.
14. Feeding frame the drift by the control of the software.
15. Running by the manner of increment, high and low speed.
16. Counting and the zero clearing a bit.
17. Easily orient the plate material.
18. With the function of returning the start place automatically.
19. With the function of pre-disposal figure.

Technical specification	unit	ALK-TP 12
Punching press	T	25
Number of stations	_ _	12
Max part- dimension	mm	2500× 1250
Max. plate' s thickness	mm	6
Hole dia and plate' s thickness	mm	50.8(δ ≤ 2.9); 31.75(δ ≤ 4.5)
Pace accuracy	mm	± 0.1
Punch speed	h/min	140
Max. one punching dia	mm	Φ 50.8
Max. moving-speed of table	m/min	32
Number of manipulative axis	_ _	3
Power	v/w	380/7200
Max. workpiece weight	kg	117
Over all dimensions (length/width/height)	mm	4900× 3200× 2200
Machine weight	T	6.5
Main ordonnance	_ _	AC servo motor Industrial controlling Computer LCD , Ball screws liner guider
Optional	_ _	Punching tool Assistant workpiece

---
