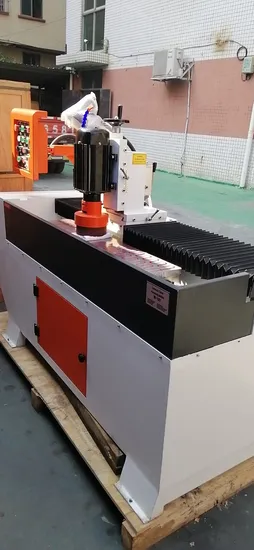

Automatic Straight Blade Grinder Wh-1000

Product Description

1,Electric magnetic chuck 2,Drag chain
3,Motor 4,Lifting scale ring
5,Feed locking handle 6,Work light
7,Feed amount adjustment rod 8,Electrical control box
9,Frequency-transformer control panel
10,Electromagnetic disk adjustment hand wheel
11,Travel position handle Application The machine is used mainly for grinding various types of the straight blade cutting tools at different angles. It is suitable for grinding different types of straight blade cutting tools such as furniture making, wood processing, printing and textile industry etc. The machine has good and reasonable appearance arrangement, it consist of the 7 components including the main body, the workbench, the carriage, the grinding head, the automatic feeding, the circuitry and the cooling, the structure of each section is compact.
The machine also is equipped manual and automatic feed grinding device. The automatic feed amount can be adjusted according to actual requirement by adjusting the position of the position rod, and control the feed amount, the working table angle can be adjusted by gyration 0-90 °, It clamps the blade with electric magnetic chuck, so the clamping is safe and reliable, the grinding head feed the blade with the speed regulation of frequency-transformer. The feed speed can be adjusted in uniform in the range of 0-60Hz according to processing requirement, so as to assure the grinding quality. For better understanding of the operation and maintenance of the machine, please read the following indication of the use. Main Parameter MAX. grinding length: 1000mm
Grinding wheel dimension: 32X125mm
Grinding blade adjustable angle:0-90°
Grinding head rotation speed : 1440r/min
Grinding head rotation angle : ±10°
Main motor power :1.5Kw
Feeding motor power :60w
Water pump power :40W
Illuminating lamp dimension :24V---35W
Workbench size :140X1000mm
Machine size :1900x940x1420mm

---
