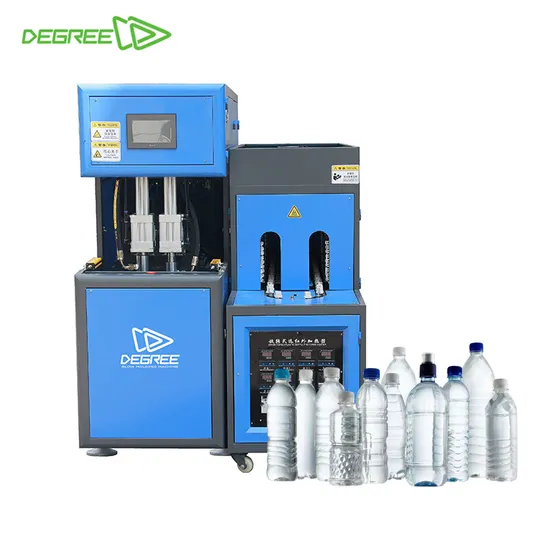

Manual Plastic Bottle Making Machines 1 Liter Bottle for Water

Product Description

Moulding Plastic Machine 2- Cavity Blow Moulding Machine
Product Description
What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc

Machine Specification:

Product Description What is Blow Molding Machine? Blow Molding Machine is one kind of two step stretch type bottle making plant. Blow Molding Machine is suitable to produce plastic bottles based on PET raw material. Blow Molding Machine is widely used to produce carbonated soft drinks bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc Detailed Photos Product Parameters Model DEG-3L (One Blower & One Heater) Clamping Force 100KN Clamping Stroke 160 MM Max. Stretching Stroke 360MM Number of Cavities 2 Cavity Theoretical Output 900 BPH(500ml) Max. Mold Thickness 300MM Voltage Standard 380v/3PH/50Hz or special order Number of Heating Zone 4 Sections Total Power (Full Loaded) 10KW Max. Container Volume 2L Neck Diameter Range 18-120mm Max. Container Diameter 360mm Max. Container Height 380mm Low Air compressor 10Bar High Air compressor 30-40Bar Blow molding machine 1450*600*1700mm Preform Heater 1800*700*1400mm Net Weight 850kgs Certifications Packaging & Shipping Company Profile FAQ Q1 :What kinds of product you supply? A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc Q2: How to tell your enquiry ? A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry. Q3: How to choose suitable machine? A3: Tell us your requirement, and we will advise you. Q4: Do you have technical support after we purchased your machine? A4: - We will provide video technical support,online support. - If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.

Machine Features:
DEG-3L 3l Blow Molding Machine is used to produce 0.1~2L cooking oil bottles, mineral water bottles, carbonated bottles, soft drinks bottle, detergent bottles etc.
1. Produce bottle from 0.1L to 2L(2 cavity)
2. Output capacity up to 1000bph for 0.5L using two-cavity blow mold (one blower & one heater)
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & start up adjustment.
10. Waste rate of finished bottle is less than 0.1%

Our Service:
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period and lifelong technical support!
Company Profile:
F&Q
Q: Are you a factory or trading company?
A: We are factory.
Q: Where is your factory located?
A: Our factory located in Taizhou City, Huangyan Area - "Town of Mold" in China, near Shanghai and Ningbo port. 3hours by train from Shanghai, 2hours by air from Guangzhou.
Q: How about quality control in your factory?
A: " Quality is the key point, do what customers needs"
Degree company focus on quality, pay great attention to quality control
from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
Q: How about guarantee for machines and moulds?
A: For machines offer one year guarantee. For molds we offer one year or 3million short guarantee, based on which comes first.
Q: Is there complete machine include mould and other accessories ?
A: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable air compressor and chiller...etc..
Q: What is the language of the PLC and touch panel?
A: Don't worry, we will translate the language in English, make sure you will have a easy operation .
Q: Can you help us with the shipment of this machine ?
A: Yes , with honor ,we have our special shipment company which already cooperate for long time, you can contact us for the freight , we will give you the best price we can. Also you can ask your own shipping forwarder, we help you done other things. Customer satisfy, is our target.

---
