Product Description
Product Description

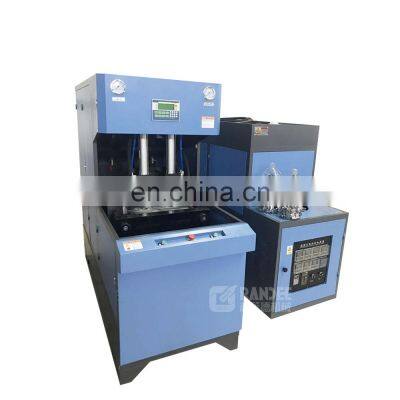

Semiautomatic 1 3 gallon 3L 5L 6L plastic pet bottle blow molding machinery blowing machine low priceProduct DescriptionSpecifications:GD-C2 Semi-automatic water bottle blowing machineCE approvalSpeed: 600pcs/h for 5000ml pet bottleVolume:2500-5000mL Brief introduction of water bottle blow molding machine:1.GD-C2 Semi automatic blow moulding machine,is CE standard2.Produce bottle from 3L to 10L(2 cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles3.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second4.Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable5.Independent Temperature Control for different heating lamp to get ideal preform heating results6.Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state7.The bottle scrap rate less than 0.2%8.Operated only by one person without special training9.Simple installation & startup adjustment Main technical parameter:TypeItemUnitGD-C2 semi automatic blow molding machineContainerProduct material/PETVolumeL0.5-5L(2 cavity)6L-10L(1 cavity)Theoretic outputBPH600BPH for 5L pet bottlePreform lengthmm15-300Preform inner diametermm15-100Max mould plate dimensionmm450*550Max mould thicknessmm450MoldingClamping forceKN120Mould opening strokemm350Blowing air pressureMpa<=3Working pressureMpa<=1Machine size and weightMain machine weightT0.7Main machine dimensioncm175*75*170Heater dimensioncm187*63*145Heater weightT0.28Powerkw14 Machine show Bottle Preform Preheating datas setup interface Heater 2 cavity mold 5L Bottle preform Detailed ImagesWashing Part:The bottle enters into the rinsing part of three-in-one machine through wide conveyor belt.The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Flat Conveyor Energy saving. High efficient. Adapt to customer factory layoutSpecial lubrication system, keep products clean, health, safety Extended service lifeElectric eyes design keep whole line running safety and quicklyOverload protection mechanism to effectively ensure the safety of the machineRelated productsCompany information Workshop detail Project cases FAQ
>>
