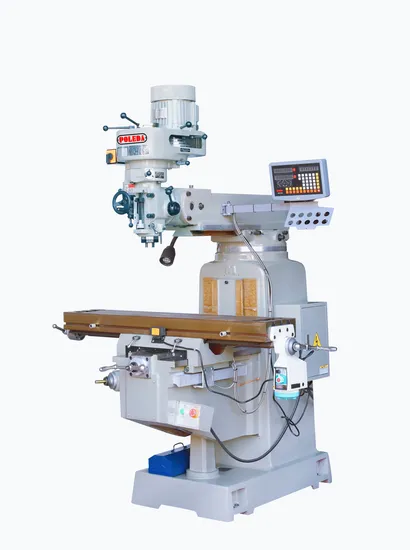

Precision 4m Multi-Function Turret Milling Machine for Professionals

Product Description

Product Description
A milling machine is an essential tool in metal cutting, designed to cut through materials using a rotating tool. It stands as one of the most versatile machine tools, capable of performing various tasks such as processing planes, surfaces, and gear parts. Additionally, the milling machine can execute drilling, reaming, boring, and other intricate processes with unmatched precision.
Detailed Structure of the Milling Machine:
The fundamental structure of the milling machine includes: bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor, and other critical components.
1. Bed: The bed forms the foundational support of the milling machine, bearing the weight of all other components. Typically cast, the bed offers superior stability and exceptional rigidity, ensuring precise operations.
2. Slide Table: The slide table is a dynamic component of the milling machine, capable of moving back and forth along the bed. Equipped with a workbench and horizontal shaft, it ensures accurate positioning and processing of machined parts by facilitating the movement of the slide table.
3. Workbench: The workbench serves as the operational platform of the milling machine, designed to securely grip and fix the machined parts. It can rotate, tilt, and perform various operations as needed, enabling the execution of complex processes with ease.Meticulously MachinedProcessing Excellence.
Product Parameters
Structural Characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other primary components are all meticulously cast from high-strength materials.
These components undergo artificial aging treatment to ensure the machine's long-term stability.
2. The milling head boasts a turret milling head with both manual and micro feeding capabilities for precise and convenient processing.
The milling head's versatility is enhanced by its ability to adjust ±45° in the vertical plane and a full 360° horizontally, broadening the machine's machining range.
3. The vertical and horizontal tables feature manual feed, mobile feed, and mobile fast feed options, with the mobile feed offering 8 distinct speed settings.
This versatility meets diverse processing requirements, while the fast feed quickly positions workpieces, reducing non-machining time.
4. The lifting platform's Z-direction lift can be controlled both manually and maneuverably, with interlocked controls to enhance safety.
5. The table's X-direction travel extends up to 800mm, with X, Y, and Z direction guides undergoing ultra-audio quenching, precision grinding, and scraping treatment.
These treatments improve accuracy and significantly extend the machine's service life.
6. The manual lubrication device ensures forced lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, minimizing wear and ensuring efficient operation.
The cooling system's adjustable nozzle allows for varying coolant flow sizes to meet different processing needs.
7. The machine tool's operating system is ergonomically suspended on the upper right side via a support arm, facilitating ease of operation.
The operation panel features intuitive, figurative symbols, making it simple and user-friendly.
8. The turret milling machine spindle options include R8, NT30, and NT40 specifications.
9. The machine is equipped with an enhanced electrical box and controller, featuring 110V and 220V output sockets.

Product Name	Milling machine
Product model	3M/3S/4M/4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	740MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	360MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
	Table bearing	300KG
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	Three-axis screw diameter	Tr32mm
	Three-axis lead screw pitch	5mm
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The MOQ varies based on your specific requirements for color, logo, and other elements. For some standard items that we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always prioritized maintaining a high quality level. Our guiding principle is to providecustomers with superior quality, competitive pricing, and exceptional service.
3.What's your main products of your company?
A: We specialize in a diverse range of machinery, such as CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What is your trade terms?
A: We accept Ex-works, FOB, CFR, and CIF terms.
5.What's the Payment Terms?
A: We accept T/T with 30% initial payment upon order and 70% balance payment before shipment.
6.What CNC system do you use?
A: We use CNC systems from FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN, based on your preference.
7.How can I choose the most suitable machines?
A: Provide us with your product drawings and applications, and we will recommend the most suitable machines for you.
8.What kind of package do you offer?
A. We typically use plywood cases to ensure all goods remain in excellent condition. Customized packaging is also available upon request.
9.Can your plant do OEM?
A: Yes, we can do both OEM and ODM for any customer.
10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we provide lifetime service for our machines.

---
