Tony Brand High Production Straw Hammer Mill Crusher

Product Description

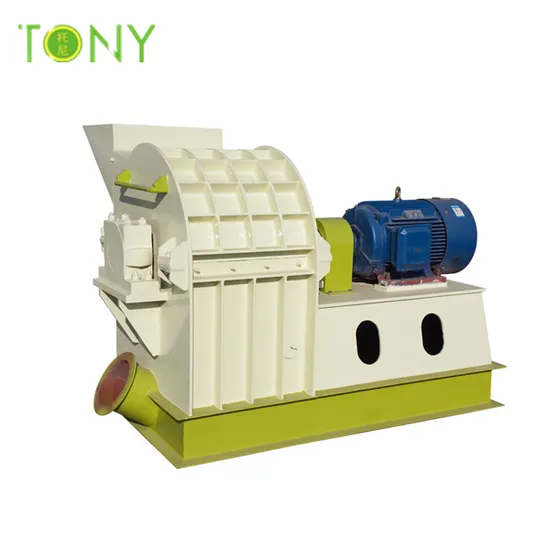

High Production Straw Hammer Mill Crusher

1. Introduction of multifunctional hammer mill
Multifunctional hammer mill is a new-style and widely used grinding machine. Its widely used for wood chips, wood branches, leftover bits in furture factories, all kinds of crop stalk, straw, clover, peanuts shells, cotton seed fur, etc.
This series of multifunctional wood hammer mill have advantage of compact structure. It is strong and durable, safe and reliable, easy operation, lower noise and vibration, high efficiency and low energy consumption, etc.
With double discharge to connect material and convenience to use, the spare part of the machine completely use quality steel material, and outsourcing parts using domestic optimal product.
The whole machine's quality is reliable and longived.
2. Raw material for multifunctional hammer mill
All kinds of wood, timber scraps,tree branches, wood chips,edge material,tree bark,bamboo skin and other material which can be crushed into sawdust.
3. Operating Principle for multifunctional hammer mill
Motor of Hammer mill drives rotor to rotate in high speed in the crushing cavity. The materials are feeded into the machine through the upper feeding opening and are striked, impacted, sheared and grinded by high speed moving. Under the bottom of rotor, it is equipped with sieve plate. Among the crushed materials fractions that is less than mesh size are discharged through sieve plate, materials fractions that is bigger than mesh size are kept on the sieve plate to be striked and grinded by hammer and they are discharged out of machine finally. The main woriking parts of hammer crusher is the rotor with hammer. Rotor consists of main shaft, disc, pin roll and hammer.
4. Advantages of multifunctional hammer mill
a. To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.
b. Low investment and energy consumption,
c. High output
d. High-quality finished products
e. Easy to operate and maintain
f. Druable, safe and reliable, low noise; Energy saving and safety
g. Wide variety of application for raw materials, high yield, suitable for installation in production line
h.It can be equipped with a separate dust discharge system, improving the workshop enviroment
i. CE approved.
5. Technical parameters of multifunctional hammer mill

Model	Power(KW)	Capacity (T)	Weight(T)	Hammer of the number (slice)	Size(mm)
TFQ65-27	22	0.5-2	1.1	24	1500×1000×1100
TFQ65-55	37-45	1-3	1.5	48	1700×1000×1100
TFQ65-75	55-75	3-5	1.9	72	2100×1000×1100
TFQ65-100	90-110	4-6	2.3	90	2400×1000×1100
TFQ130-50	132-160	5-6	5.3	108	2800×1620×2100
TFQ130-100	160-220	6-8	6.8	160	3020×1620×2170

6. Spare Parts of multifunctional hammer mill
The sawdust making machine key spare parts such as hammers and screener are made
by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.
7. More Details of multifunctional hammer mill
A complete grinding process includes belt conveyor,multifunctional hammer mill,blower,cyclone and bag dust collector.

Components of Grinding Process
Item	Function
Belt Conveyer	To transport materials into hammer mill.
Multifunctional Hammer Mill	To crush the materials into 3-5mm sawdust
Blower	To help transport the sawdust into dryer
Cyclone	To discharge the materials and collect the dust
Air-lock	To prvent the outside air from entering inside
Bag Dust Collector	To collect the dust while in the production

Packaging & Shipping
8. TONY Shipping to All over the World
9. TONY Exhibition all over the World
10. TONY Clinets All over the World
11. TONY CE Certificate
12. About us:
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
We need to know:
A.What capacity would your prefer?-----We supply different capacity from 300TKG/Hour up to 7T/Hour.
B.What is your raw material?-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.
C.What is your raw material size?
D.What is the moisture of your raw material?-----Better to be under 30%

13. Our promise to you...
I promise to provide a high quality product at a fair price that will last for years and years, shipped as quickly as possible along with professional engineers support you require to get you up and running. You can call me anytime on trademanager. I'm always working and I never sleep! (Ok, maybe sometimes.) All the parts of products are rechecked before transportation, therefore the clients will receive the best quality products.. Free consulting service, please contact us when you have any questions about biomass pellet machinery. 14. We can also supply for the pellet machines as following:
1. The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.

---
