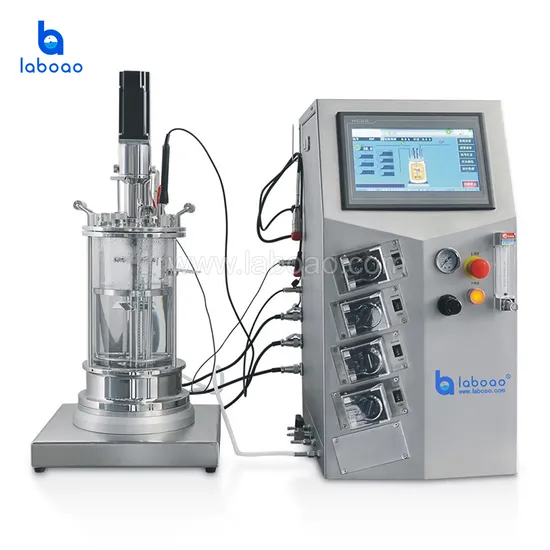

Laboao Benchtop Mechanical Stirring 1-10L Glass Fermenter Bioreactor

Product Description

Product Description Off-site sterilization glass fermenter after suitable fittings are installed, it can be suitable for culture of cells of mammals and insects.The semi-circular bottom stainless steel jacket and built-in serial inner heat exchange baffles are conducive to temperature control of hot and cold water and fast heat transfer. Tanks with working volumes of 1 L, 2L, 3L, 5L, 7L and 10L are available for selection, culture tanks are interchangeable.
Specification

Name	Off-site sterilization magnetic drive glass fermenter(magnetic stirring)			Off-site sterilization shaft drive glass fermenter(mechanical agitated)
Model	LBR-XGC			LBR-XGJ
Volume	0.3L/0.5L/1L/2L/3L/5L/7L/10L/15L
Material	316 stainless steel bottom jacketed WS+ high boron glass
Stirring method	Magnetic coupling at the bottom drive mechanical stirring at the top			Shaft coupling drive top mechanical agitation
Sterilization method	Off-position autoclave sterilization (sterilization pot size: 1l/2L/3L/5L/7L/φ350*520, 10L, 15L φ388*650)
Tank volume	1L	2L	3L	4L		5L	7L	10L
Tank size	φ90*155	φ100*260	φ150*210	φ150*260		φ150*310	φ150*710	φ174*458
Maximum sterilization size	φ150*300	φ160*380	φ180*420	φ180*470		φ180*521	φ180*620	φ260*630
Tank weight with culture medium (kg)	5kg	6.5kg	9.5kg	13.5kg		15.5kg	18.5kg	21.5kg
Basic configuration	Temperature, speed, PH, dissolved oxygen, replenishment, defoaming, air flow (manual), tank pressure (manual)
Power	220V/0.8KW
Shape space	800*500*600mm
Net weight	40kg
Application	Magnetic drive is suitable for products with low medium viscosity, long fermentation period and high requirements for biological safety				Shaft drive is suitable for high-density, high-viscosity, high-oxygen-consumption microbial cultivation, and has strong versatility

Features
1. The tank is a combination of high temperature, acid and alkali resistant, corrosion resistant silicon borosilicate glass cylinder and 316L stainless steel

2. Rotameter display, adjust the flow of gas according to process requirements

3. The large-area stainless steel jacket ensures sufficient heat exchange and sterilization, and the cooling water temperature is +5~55ºC; accuracy: ±0.1ºC; resolution: 0.1ºC;

4. Electrode detection, peristaltic pump replenishing defoamer, automatic foam control

5. Perfect feeding system (acid, alkali, foaming enemy, culture agent), can feed regularly and quantitatively

Application

• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products

• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library

• Metabolic flux research and high-throughput screening of highly active mutant strains;
• Comparative studies, such as: isolation and screening of clinical strains

• Optimization of growth medium for cell lines or high-yield strains
